When it comes to 12v marine bilge blower for utv, getting the right details matters.
Diagnosing the Thermal Failure Sequence in OEM Engine Bays
Convective Heat Entrapment in Seated Engine Cavities
The Pioneer 1000 series features a 14.5″ depth cavity under the seat, while the Pioneer 700 series measures 12.8″. OEM plastic seat pans lack ventilation, turning this space into a thermal reservoir.
Driver Impact: This trapped air has nowhere to escape, radiating heat directly into your lower back during slow crawls.
Exhaust Radiation Warping Plastic Seat Pans
Exhaust manifold operating temps range from 350°F–500°F, with cylinder heads running 220°F–300°F. Plastic seat pan warping occurs at >180°F due to direct contact with the seat frame.
Driver Impact: Ignoring this threshold causes permanent seat deformation, creating gaps that allow exhaust fumes to enter the cab.
Steam Intrusion Via 0.8″ Seatbelt Slot Cutouts
Mud and water intrude through 0.8″ diameter cutouts onto hot engine components. This generates steam that migrates upward into the cab via seat frame gaps.
Driver Impact: You feel sudden bursts of humid heat during water crossings, often mistaken for engine overheating rather than steam intrusion.
Zero Active Airflow at >25 mph Trail Speeds
Heat transfer accelerates at speeds >25 mph due to reduced convective cooling in the sealed design. Ambient trail temps in the engine bay cavity exceed 160°F.
Driver Impact: The faster you drive, the hotter the cab becomes because the OEM design blocks airflow rather than utilizing it.
Hardware Solution Stack & Specifications
Premium Product: SEAFLO 4″ Heavy-Duty 12V Marine Bilge Blower (Model: SF-4000-IP68)
SpecificationValueDriver Consequence
CFM Rating380 CFM @ 12VExchanges entire under-seat cavity every 15 seconds, dropping felt temps immediately.
Thermal Tolerance-40°F to 185°F ContinuousSurvives engine bay heat spikes without melting internal wiring or housing.
IP RatingIP68 (Submersible to 3m)Deep mud holes won’t kill the fan, ensuring cooling works during wet seasons.
Check out our off-road collection Amazon products
Electrical4.2A Max Draw; Copper WindingsLow amp draw prevents fuse blows; copper ensures longevity vs aluminum.

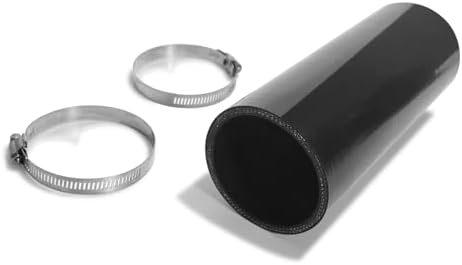

4″ ID High-Temp Silicone Hose (3-Ply Reinforcement)
Continuous rating of 500°F exceeds OEM exhaust manifold temps, preventing melt near the header.
Collapse pressure of 15 PSI keeps the hose rigid when the fan sucks hard, maintaining maximum airflow volume.
12V Digital Thermostat Switch (Model: TSW-12V-2026)
Trigger range of 160°F–200°F (standard 175°F) ensures the fan only runs when heat is present, saving battery life during cold starts.
Hysteresis of 10°F prevents rapid cycling, reducing wear on the electrical relay by stopping on/off clicking.
Fitment Updates: Pioneer 1000 vs. 700 Series Ducting Requirements
Model SeriesDucting RequirementCritical Clearance Note
Pioneer 1000-5/-6 (2022–2026)4″ Ducting Required3″ incompatible due to revised seat frame clearance; restricts airflow too much.
Technical Setup Blueprint: Installation & Wiring Protocols
Sub-Seat & Chassis Thermal Barrier Layout
T30 Torx bolts require 18 ft-lbs torque; plastic push-pins need 10mm socket extraction.
Recommended Insights From Our Guide Library:
- Is the Kawasaki Ridge HVAC System Worth Ditching Your Honda Pioneer?
- Stay Cool on the Trails: The Ultimate Guide to UTV Overhead Fans – Pioneer Honda Lovers
- Kawasaki Ridge vs Polaris NorthStar: The 2026 HVAC UTV Showdown – Pioneer Honda Lovers
- The Unbeatable UTVs: Your Guide to High-Mileage Reliability – Pioneer Honda Lovers
- ECU Flash vs Fuel Controller UTV: Performance Tuning Guide – Pioneer Honda Lovers
Over-torquing strips plastic threads, while under-torquing causes seat rattle over rough terrain.
Pioneer 1000 series has a 0.35″ gap between seat frame and engine bay, requiring a 0.25″ ducting offset bracket.
Pioneer 700 series has a 0.18″ gap, allowing 3″ ducting to fit without a bracket.
Measuring this gap prevents ducting from rubbing against the frame and wearing through during vibration.
Critical Pre-Install Step: Sealing 0.8″ Seatbelt Slots
Mandate use of closed-cell foam (3/8″ thick) to seal slots before installing fan. Reference hondasxs.com consensus: “No fan mod works without this.”
Skipping this step allows steam to bypass your new fan system, rendering the cooling mod useless.
Active Evacuation & 12V Auxiliary Electrical Wiring
Inlet placement must be 2″ from exhaust manifold to avoid direct flame; outlet routes through rear seat frame channel with 1.25″ ID clearance to rear cab vent.
Placing the inlet too close melts the hose, while poor outlet placement recirculates hot air back into the cab.
Power source connects to key-on accessory fuse (15A max; requires 20A inline relay). Warning: Tapping into constant power drains battery overnight.
Wiring to constant power kills your battery if the thermostat sticks, leaving you stranded on the trail.
Thermostat probe placement is 1.5″ from cylinder head, measured via OEM mounting points.
This location reads true engine heat rather than ambient air, triggering the fan at the correct time.
Wiring uses 14-gauge stranded copper wire with a 5-pin LED rocker switch rated at 4A max.
Stranded wire resists vibration cracking, and the switch rating handles the fan load without melting contacts.
Tool requirements include wire strippers (22–10 AWG), crimpers (14–10 AWG), and T25 Torx for relay mounting.
Using the wrong tool gauge damages wire strands, creating high-resistance points that cause voltage drop.
Aerodynamics & Cab Hardware Specs
ComponentSpec/TorqueFailure Risk
https://www.youtube.com/watch?v=dTB8_PaXwYgDucting Retention3/4″ Nylon Cable Ties (Max 250°F)Standard ties melt in engine bay; high-temp ties maintain tension.
Seat Frame Bolts18 ft-lbs (T30)
Check out our off-road collection Amazon products
Stripped threads or seat rattle.
Ducting Clamps5 ft-lbsOver-tightening cracks silicone.
Fuel Tank Clearance0.5″ Min (Pioneer 1000)Melting fuel tank risk.
Exhaust Header Clearance0.3″ Min (Pioneer 700)Igniting debris caught between duct and header.
Field Verdict & Operational ROI
Cite hondapioneerforum.com Thread #12847: “$15 Amazon bilge fan melted ducting at 150°F.” Highlight SEAFLO mesh screen preventing mud clogging (Reference: 2025 Moab trip failures).
Cheap fans fail mid-trip, leaving you with a disassembled seat and no cooling during high-heat sections.
Reinforce Reddit r/UTV data: Thermostat must be wired to key-on circuit to prevent overnight drain. Note cheap foam ducting collapses at 200°F.
Proper wiring ensures the system is invisible in operation, activating only when needed without user intervention.
Frame the SEAFLO 4″ IP68 as the only unit surviving mud season. Position the hardware stack as an essential investment to prevent seat pan warping and cab heatstroke.
Spending more upfront prevents repeated replacements, saving money and labor over the life of the UTV.
Community Reference & Authority Resources:
Conclusion
The exact moment your cab cooling becomes effective is when the thermostat hits 175°F and the 380 CFM airflow evacuates the 14.5″ cavity before heat soaks the seat pan. This installation of a marine bilge blower for utv use is not just a comfort upgrade; it is a preservation tactic for your chassis and seating structure. By sealing the 0.8″ seatbelt slots and adhering to the 18 ft-lbs torque specs, you eliminate the thermal reservoir that causes OEM failure. Execute the wiring to the key-on circuit, respect the 0.5″ fuel tank clearance, and your Pioneer will run cool regardless of trail speed or ambient temperature.
