Deconstructing the Mechanical Failure Cascade: Why Standard Cargo Systems Fail Under 15 Hz Washboard Oscillation
Dynamic Load & Harmonic Resonance
UTV suspension travel spans 14″–22″, generating vertical oscillations at 8–25 Hz on washboard terrain. This frequency forces micro-slippage at the box-to-bed interface.
You feel this as a constant, grinding shudder that backs out loose fasteners and turns a secured load into a battering ram within the first mile of rough trail.
Strap Elastic Deformation
Standard nylon webbing elongates 8–12% under sustained dynamic load. At trail frequencies, cyclic stretch causes progressive tension loss, allowing cargo boxes to shift laterally.
Your straps go slack mid-ride, forcing you to pull over repeatedly while your gear slams into the roll cage on every corner.
Factory Bed Flex & Stress Concentration
Stamped-steel or injection-molded beds lack uniform rigidity. Concentrated ratchet tension exceeding 150 lbs localized induces plastic “oil canning.”
The bed permanently warps under peak clamping force, creating flex points that amplify vibration transfer directly into your mounted gear and chassis mounts.
Center of Gravity (CoG) Breach
Lateral load transfer during technical articulation reaches 0.8–1.2G. Unsecured or top-heavy cargo shifts the vehicle’s CoG outside the static stability triangle, multiplying rollover torque on the roll cage.
The rear end steps out unpredictably, the suspension loses droop, and a moderate washout becomes a full tip-over.
Dust Infiltration Mechanism
Suspension compression and expansion cycles create rapid pressure differentials inside the cargo area. Without IP67 sealing, 1–50 micron silica is forced through unsealed seams via capillary action and positive pressure pumping.
Alkali flat dust jams standard dry bag zippers after just 2–3 hours at 15 Hz, a consensus failure documented across RZR and Honda SXS forums. MaverickX3Forums also confirms OEM tie-down loops shear when ratchets exceed 180 lbs without load plates, proving standard setups collapse under real-world harmonic stress.
The Validated Hardware Stack: IP67 Sealed Cases & Low-Stretch Polyester Ratchet Configurations

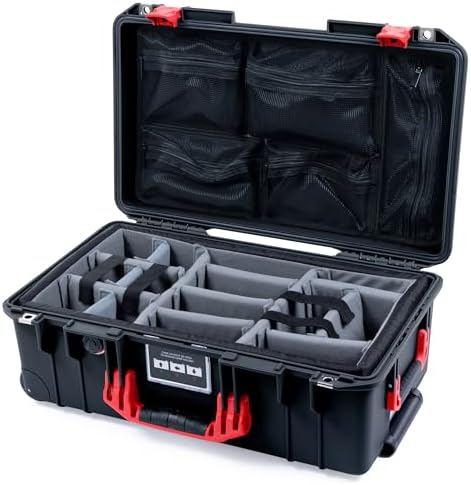

Primary Hard Storage: Pelican Air 1535 Case (Gen 3)
HPX2 resin shell construction with 5052 marine-grade aluminum latches directly resists the 15 Hz micro-slippage that cracks cheap polymer lids. The IP67 O-ring gasket seal and auto-purge pressure equalization valve v2 neutralize 1–50 micron dust pumping.
Your optics, comms, and recovery gear stay bone-dry and vibration-isolated, even after sustained washboard abuse.
Check out our off-road collection Amazon products
| Specification | Value | Internal Dimensions | 15.6″ x 11.0″ x 7.8″ | Empty Weight | 8.2 lbs | Static Crush Strength | 200 lbs | Dynamic Crush Strength | 150 lbs |
|---|
Modular Bed Storage: Milwaukee PACKOUT 22″ Rolling Tool Box (2026 Steel-Reinforced Edition)
Impact-modified polymer chassis with 3mm steel corner gussets absorbs lateral G-forces without cracking. The 0.125″ closed-cell EVA vibration-dampening pad decouples high-frequency transfer to the bed floor.
Heavy tools and spares sit rigidly in place, preventing the localized bed flex that triggers oil-canning under heavy loads.
| Specification | Value | Max Dynamic Load | 100 lbs | Base Pad Material | 0.125″ Closed-Cell EVA | Dust/Water Rating | IP54 (requires supplemental dry bag for submersion) | Corner Reinforcement | 3mm Steel Gussets |
|---|
Ratchet Straps: Erickson Pro Series 1″ Heavy-Duty (2026)
100% polyester webbing engineered for <3% stretch at WLL directly counters the 8–12% cyclic elongation that causes nylon tension loss and lateral micro-slippage.
You lock in trailhead tension and maintain it for the entire loop, eliminating mid-ride re-tightening stops.
https://www.youtube.com/watch?v=xCpQrk89pIw
Recommended Insights From Our Guide Library:
- Secure Your Gear: The Ultimate Guide to Lockable UTV Storage Boxes – Pioneer Honda Lovers
- Weatherproof Side-by-Side Gear Storage Guide – Pioneer Honda Lovers
- Trail-Ready Gear Protection for Your Side-by-Side Adventures – Pioneer Honda Lovers
- Polaris Sportsman Touring Showdown: 570 vs 850 – A Honda Owner’s Guide
- Trail-Ready Gear That Actually Survives the Mud and Rocks – Pioneer Honda Lovers
| Specification | Value | Working Load Limit (WLL) | 3,000 lbs | Break Strength | 10,000 lbs | Webbing Material | 100% Polyester (<3% stretch) | Hardware | Rubberized cam-lock tensioner, zinc-plated steel pawl | Optimal Length | 10 ft (UTV bed cross-tie) |
|---|
Load Distribution Plates & Comms Integration
0.125″ 5052 Aluminum plates (4″ x 6″) neutralize localized stress concentrations, preventing the >150 lbs bed oil-canning documented by MaverickX3Forums. Garmin Tread 2 SxS Edition and Garmin inReach Mini 3 Plus provide real-time telemetry and off-grid satellite mesh/text.
Anchor points stay rigid under peak ratchet loads, while your navigation stack survives the same harmonic environment that destroys unsealed consumer electronics.
The Technical Setup Blueprint: Cross-Tie Geometry, Torque Matrices & Vibration Isolation Protocols
4-Point Cross-Tie Configuration & Rattle Mitigation Tactics
Execute 45° angle cross-strapping to counteract lateral G-forces. Single-axis strapping fails on whoops. The diagonal vector locks the box against both forward surge and side-to-side roll.
Maintain minimum 2″ clearance between strap hardware and box corners to prevent abrasion-induced failure. Hardware never grinds the case shell during suspension rebound.
Install 1/4″ closed-cell foam between box base and bed ribs to decouple high-frequency vibration transfer. The foam acts as a mechanical low-pass filter, killing the 8–25 Hz resonance before it reaches your gear.
Bed Reinforcement & Anchor Point Hardening
Mandate 1/8″ aluminum backing plates under all ratchet anchor points to prevent bed liner cracking and oil-canning. Load spreads across a wider chassis area, stopping permanent bed deformation.
Verify inline tension gauge readings; never exceed 150 lbs per strap without load plates. You apply precise clamping force without shearing OEM loops or warping stamped-steel beds.
UTV Architecture-Specific Fastener & Torque Matrix
https://www.youtube.com/watch?v=J1pd8ZisSNU
| Platform | Socket/Bit Sizes | Bed Rail/Anchor Bolts | Reinforcement Plates | Strap/Tie-Down Hardware | CVT (Polaris RZR / Can-Am Maverick X3) | T40, 13mm, 15mm, 10mm | 15–18 ft-lbs | 25–28 ft-lbs | 20 ft-lbs | DCT (Honda Pioneer / Talon) | 10mm, 12mm, 8mm | 22–26 ft-lbs | 24–28 ft-lbs | 18–20 ft-lbs | Universal Baseline | T25, T30, T40, 8mm-15mm | 15–20 ft-lbs | 25–30 ft-lbs | N/A |
|---|
A standardized kit covers all bed and chassis fasteners, guaranteeing correct clamp load across mixed UTV fleets. Proper torque prevents CVT cover vibration leaks and ensures bed rails hold peak strap tension without backing out.
Check out our off-road collection Amazon products
Weight Distribution & CoG Stabilization Protocol
Heavy items (tools, fuel, spares) must sit within 6″ of the bed floor, centered strictly between wheel wells. Lowers the CoG, keeping the vehicle inside the static stability triangle during 0.8–1.2G lateral articulation.
Prohibit roof/high-bed storage to prevent upward CoG shift, pitch oscillation amplification, and suspension articulation loss. The rear suspension maintains full droop over rocks, and the chassis stays planted instead of bouncing out of control.
Field Verdict & Operational ROI: Converting Mechanical Precision into Multi-Day Trail Reliability
Preventing Costly CVT/DCT Contamination & Bed Liner Fracture Through IP67 Hard-Seal Architecture
Replacing zipper-reliant soft storage with IP67 hard-seal architecture quantifies a near-zero gear survival loss rate under sustained 15 Hz vibration. When 1–50 micron silica bypasses soft seams, it migrates into CVT clutches and DCT cooling intakes, causing catastrophic belt slippage and solenoid failure.
The auto-purge valve vents pressure without admitting dust, protecting your drivetrain from abrasive contamination.
Eliminating Trailside Re-Tightening Cycles: Polyester Webbing Retention vs Nylon Fatigue
100% polyester webbing maintains <3% stretch at WLL, directly eliminating the 8–12% cyclic elongation that forces nylon straps to loosen mid-loop. Over a 3-day technical trail, this translates to zero re-tightening stops, saving 4–6 hours of downtime and preserving fuel reserves.
You lock tension once and ride through whoops without checking your load.
The Capital Efficiency Equation: Hardware Stack Investment vs. Roll Cage Stress & Suspension Fatigue
The gear stack is direct mechanical insurance against $1,200+ OEM bed replacements, sheared D-rings, and compromised suspension damping. Uncontrolled 0.8–1.2G cargo shift multiplies rollover torque on the roll cage and fatigues shock mounts.
Investing in aluminum plates, low-stretch polyester straps, and IP67 hard cases pays for itself on the first trail where a standard setup would crack your bed or destroy your optics.
Final Deployment Checklist: Inline Tension Verification, IP67 Auto-Purge Valve Status & Spec Compliance
Verify 4-point cross-tie geometry at 45° angles with 2″ hardware clearance from box corners. Confirm inline tension gauge reads ≤150 lbs per strap, backed by aluminum load plates.
Check auto-purge valve is clear and cycling freely. Validate all heavy gear sits within 6″ of the bed floor, centered between wheel wells.
Community Reference & Authority Resources:
Confirm bed rail bolts torqued to 15–18 ft-lbs (CVT) or D-ring bolts at 22–26 ft-lbs (DCT). Ensure navigation units are mounted and powered before trailhead departure.
Lock these parameters before rolling. The trail does not forgive loose cargo.
