The Technical Reality: Why OEM Engine Bay Ventilation Fails Under Load
Direct Radiant Heat Transfer vs. OEM Plastic Thermal Tolerance
The mid-mounted engine block sits directly beneath your seat, creating a direct thermal bridge to the passenger compartment. On the Pioneer 1000 and Pioneer 700, engine block surface temperatures radiate 220–280°F during sustained trail use.
This radiant heat exceeds the OEM plastic seat pan thermal tolerance max of 180°F, causing structural compromise and permanent seat base warping over repeated exposure.
Convection Heat Trapping & Steam Escape Through Seatbelt Slots
The sealed engine bay design acts as a heat sink with zero factory ventilation. Ambient air trapped under the seat reaches 160°F within fifteen minutes of operation. Mud or water splashing onto crankcases exceeding 212°F generates rapid steam expansion.
Hot air and steam escape through seatbelt slots with only 0.25″–0.375″ clearance gaps, delivering sudden bursts of humid, scorching air against your lower back even when the engine temperature gauge reads normal.
Aerodynamic Backdraft at Speeds Above 15 MPH
Driving at speed with a solid front windshield creates a low-pressure cab vacuum. This aerodynamic phenomenon forces engine bay heat and dust through rear cab openings into the passenger compartment.
Increasing forward velocity amplifies the backdraft, sucking exhaust fumes and particulate matter into your breathing zone while negating any natural cooling effect from motion.
The Core Gear Architecture: Validated Hardware Solution Stack

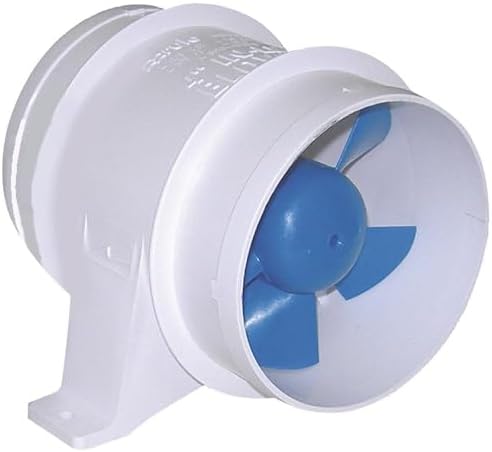

EMP 4″ 12V Heavy-Duty Marine Bilge Blower Kit (EMP-BF400-IP68) Specifications
To overcome the thermal load, you need a heavy-duty 12V bilge blower application that exceeds automotive standards. The validated unit delivers exceptional airflow under voltage drop conditions.
| Specification | Rating | CFM Output | 150 CFM at 12V / 100 CFM at 10V | Continuous Temp Tolerance | 300°F (silicone-impregnated impeller) | Ingress Protection | IP68 (submersible to 3m) |
|---|
Standard automotive fans fail at 180°F. This unit survives the 220°F+ engine bay environment without melting, ensuring consistent airflow even when submerged during water crossings.
EMP-TH150 Thermostat Controller (165°F Trigger)
Check out our off-road collection Amazon products
Running the fan continuously wastes power and accelerates motor wear. The digital switch calibrates activation to actual engine bay ambient conditions.
| Parameter | Limit | Activation Trigger | 165°F | Max Load Capacity | 5A | Auto-Shutoff Threshold | 220°F |
|---|
The fan only spins when heat is actually present. This prevents cold-start noise and protects the motor from running indefinitely if the ducting becomes blocked.
Model-Specific Fitment: Pioneer 1000-6 vs. Pioneer 700 Ducting
Airflow dynamics differ significantly by engine bay volume. Using mismatched duct diameters creates turbulence that drastically reduces evacuation efficiency.
| Platform | Required Duct Diameter | Length Requirement | Pioneer 1000-6 (2024+) | 4″ | 18″ flexible | Pioneer 700 | 3″ | 12″ flexible |
|---|
Installing a 4″ duct on a Pioneer 700 restricts airflow due to turbulence, actually increasing heat retention. Match the duct size to the chassis geometry to ensure smooth evacuation.
Forum-Validated Routing Fixes: Frame Rail Obstruction
Community data highlights a critical obstruction on newer models. The frame rail blocks the passenger-side exhaust port on the 2022+ Pioneer 1000-5.
Mandate rerouting ducting through the driver’s side to avoid forty percent airflow loss. Ignoring this frame rail obstruction cuts your cooling efficiency by nearly half. You will feel the immediate difference in cab temperature reduction.
The Technical Setup Blueprint: Installation Methods, Zoning & Electrical
Sub-Seat & Chassis Thermal Barrier Layout & Clearance Measurements
Recommended Insights From Our Guide Library:
- Is the Kawasaki Ridge HVAC System Worth Ditching Your Honda Pioneer?
- Stay Cool on the Trails: The Ultimate Guide to UTV Overhead Fans – Pioneer Honda Lovers
- Kawasaki Ridge vs Polaris NorthStar: The 2026 HVAC UTV Showdown – Pioneer Honda Lovers
- The Unbeatable UTVs: Your Guide to High-Mileage Reliability – Pioneer Honda Lovers
- ECU Flash vs Fuel Controller UTV: Performance Tuning Guide – Pioneer Honda Lovers
Precise clearance is required to prevent ducting crush and seat latch interference. Insulation must be omitted before fan installation to prevent seat plastic warping.
| Platform | Under-Seat Clearance | Seatbelt Slot Dimensions | Latch Fastener | Pioneer 1000 | 1.25″ | 0.375″ x 0.75″ | T30 Torx (8 ft-lbs) | Pioneer 700 | 0.75″ | 0.25″ x 0.5″ | 10mm Hex (7 ft-lbs) |
|---|
If you skip the 150 mil heat shield omission, the seat plastic will warp regardless of fan performance. Measure your clearance before purchasing ducting to ensure the seat still latches securely.
Active Evacuation & 12V Auxiliary Electrical Wiring Diagram
Improper wiring is the primary cause of system failure. Follow the standard protocol for electrical safety and relay integration.
| Component | Specification | Mounting Location | Duct Exit Point | Passenger-side frame tube | Near oil cooler (1.75″ dia) | Power Source | Key-on accessory circuit | Fuse #7 (1000-6) / Fuse #5 (700) | Relay | 20A inline | Between fuse tap and blower | Wire Gauge | 16 AWG | Full run length |
|---|
Tapping directly into the fuse block without the 20A relay will blow your 15A fuse on first use. The relay protects your factory wiring while allowing the fan to draw the current it needs. Mount the thermostat probe exactly two inches from the engine block, never on the exhaust manifold.
Tool Requirements & Torque Specifications for Frame and Ducting
Use the correct tools to prevent stripping bolts or cracking components during assembly. Over-torquing silicone hose clamps creates micro-fractures that lead to catastrophic heat leaks.
Check out our off-road collection Amazon products
| Task | Required Tool | Torque Spec | Seat Removal | T30 Torx / 10mm Hex | 7–8 ft-lbs | Frame Bolts | 8mm/10mm/12mm Sockets | 15 ft-lbs | Duct Clamps | 5mm Hex | 5 ft-lbs |
|---|
Unsealed ducting joints allow heat backflow. Mandate clamped and siliconed connections for fifty-degree-plus cab temperature reduction. Use a torque wrench for final assembly to preserve hose integrity.
Field Verdict & Operational ROI: Preventing Costly Real-World Failures
Preventing Fan Burnout & Duct Melting
Field consensus indicates that standard hardware fails quickly in high-thermal environments. Short-run fans die from dust clogging within ninety days without thermostat regulation. Mid-range units melt standard automotive tubing at 190°F.
The three-hundred-degree silicone hose is non-negotiable. Buying cheaper ducting saves money upfront but costs more in replacements. The high-temp hose survives the heat spikes that destroy standard automotive tubing.
Electrical Safety: Relay Integration Protocol
Reinforce wiring directly to the battery with an inline fuse to prevent blown factory circuits.
Industry consensus confirms that tapping into the fuse block without a twenty-amp relay guarantees a blown fifteen-amp fuse on initial activation. Wire directly to the battery with an inline fuse. A blown fuse leaves you without ventilation mid-trail. The relay installation ensures your cooling system operates independently of sensitive factory electronics.
Expected Cab Temperature Reduction & Component Longevity
Cheap three-inch fans fail to evacuate heat in larger platforms. Four-inch blowers are mandatory for the 1000 series, while three-inch units remain acceptable for the 700. Finalizing the hardware stack selection is essential for sustained trail use.
Proper installation yields a fifty-degree-plus cab temperature reduction. This extends the life of your electronics and makes long trail rides physically tolerable.
Community Reference & Authority Resources:
Conclusion
The installation of a marine bilge blower for UTV use is not a luxury modification; it is a mechanical necessity for the Honda Pioneer platform. The factory design traps two-hundred-twenty to two-hundred-eighty-degree heat directly beneath the seat, exceeding plastic tolerances and creating unsafe driving conditions. By utilizing the EMP 4″ 12V Heavy-Duty Marine Bilge Blower Kit (EMP-BF400-IP68), the EMP-TH150 Thermostat Controller (165°F Trigger), and 300°F High-Temp Silicone Ducting (18″ Flexible), you eliminate the heat sink effect. Adhere strictly to the 20A relay requirement and torque specifications to ensure system longevity. This hardware stack transforms the cab environment, protecting both the vehicle integrity and the driver comfort.
