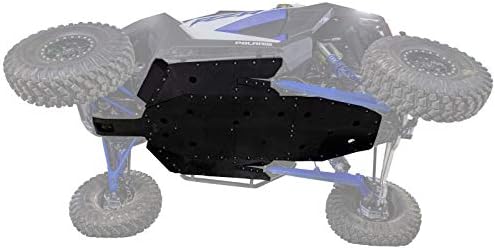

SuperATV 1/2″ Thick UHMW Skid Plate for 2020+ Polaris RZR PRO XP …

$713.95

Buy on Amazon

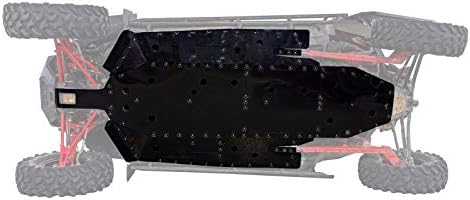

Bestseller #5

SuperATV 1/2″ Thick UHMW Skid Plate for 2020+ Polaris RZR PRO XP4…

$929.95

Buy on Amazon

Rock crawling is the ultimate test of precision, patience, and machine articulation. Unlike high-speed racing, this discipline is a slow, deliberate dance over massive boulders, vertical ledges, and treacherous off-camber obstacles. In a competition setting, every inch matters, and a single mistake can mean a roll-over or a costly penalty.

To succeed in this highly technical sport, your UTV needs to be transformed from a recreational vehicle into a purpose-built rock warrior. Rock crawling competition preparations focus on maximizing traction, ground clearance, and articulation while ensuring the driver and machine are protected from the extreme forces involved.

I’ve seen the best crawlers in action, and their success is a direct result of meticulous preparation. This guide will break down the essential modifications and strategies you need to dominate the rocks and climb your way to the top of the podium.

Phase 1: The Contact Point—Tires and Wheels

In rock crawling, the tire is your most important tool. It must grip, conform, and withstand immense pressure without failing.

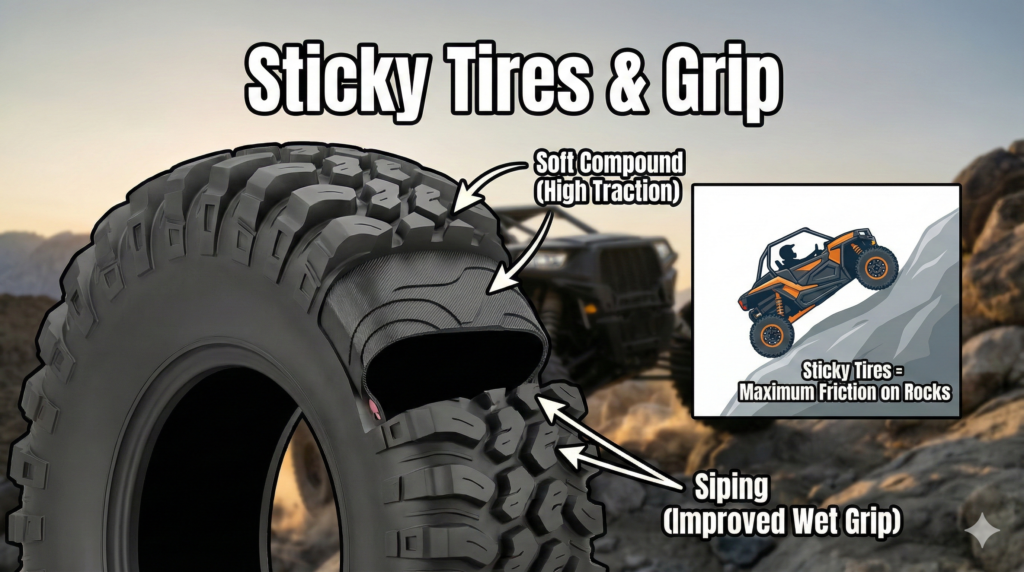

1. Sticky Tires for Maximum Grip

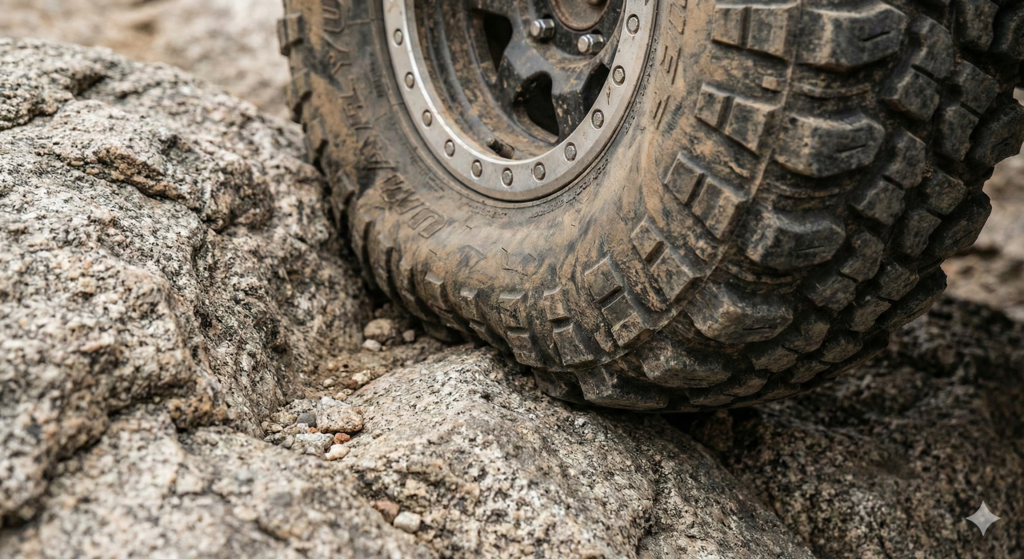

Soft Compound: The gold standard for competition rock crawling is a “sticky” tire, such as the Maxxis Roxxzilla or Nitto SXS tire [1] [2]. These tires use a softer rubber compound that conforms to the irregular surfaces of the rock, maximizing the contact patch and providing unparalleled grip.
Size Matters: Most serious rock crawlers run large tires, typically 32 to 35 inches, to increase ground clearance and improve the angle of attack.

2. Beadlock Wheels

Low Pressure, High Traction: Rock crawling requires running extremely low tire pressures (often single digits) to allow the tire to flex and wrap around obstacles. Standard wheels cannot hold the tire bead securely at these pressures.
Beadlock Advantage: Beadlock wheels mechanically clamp the tire bead to the rim, preventing the tire from coming off the wheel when running low pressure or when the tire is subjected to extreme side loads.

Phase 2: Suspension and Articulation

The ability of your UTV to keep all four tires on the ground, regardless of the terrain, is called articulation. This is achieved through a carefully tuned suspension system.

1. Long-Travel Suspension

Flexibility: A long-travel suspension kit allows the wheels to move independently over a greater distance, ensuring that the tires maintain contact with the ground even when the UTV is severely tilted or one wheel is fully extended.

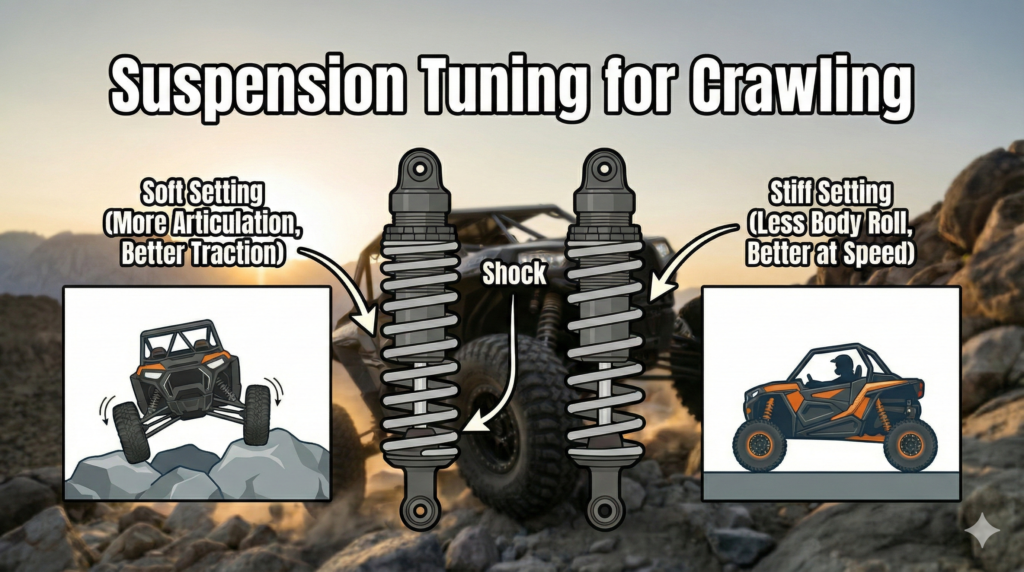

Shock Tuning: Shocks must be tuned to be relatively soft to absorb the impact of large rocks and allow for maximum articulation, but firm enough to prevent excessive body roll or bottoming out [3].

2. High-Clearance Components

A-Arms and Trailing Arms: Upgrading to high-clearance A-arms and trailing arms is essential. These components are bent to provide extra ground clearance, preventing them from snagging on rocks and ledges.
Sway Bar Disconnects: For extreme articulation, some competitors use sway bar disconnects to allow the suspension to move more freely, though this must be balanced with the need for stability on off-camber sections.

Phase 3: Gearing and Drivetrain

Rock crawling is a low-speed, high-torque activity. Your drivetrain needs to be optimized for slow, controlled power delivery.

1. Portal Axles and Gear Reduction

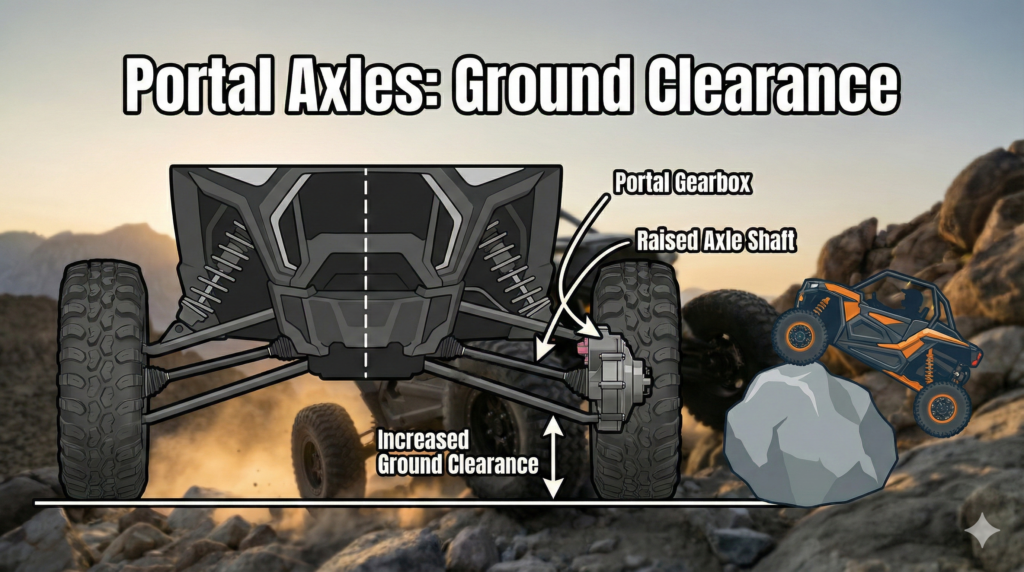

Torque Multiplication: Portal axles are a popular modification that provides gear reduction at the wheel hub. This multiplies the torque delivered to the wheels and, crucially, provides several inches of extra ground clearance without needing a massive suspension lift.
Low-Range Gearing: A low-range gear reduction kit for the transmission is vital for achieving the slow, controlled speed necessary for technical crawling. This allows the driver to “creep” over obstacles with precision.

2. Drivetrain Protection

Skid Plates: A full set of heavy-duty skid plates, preferably made of UHMW (Ultra High Molecular Weight) plastic, is mandatory. This material is slick and allows the UTV to slide over rocks without getting hung up or damaging vital components like the differential and transmission [4].
Reinforced Components: Upgrading to heavy-duty axles, tie rods, and steering components is necessary to withstand the immense shock loads and stresses encountered when a tire suddenly grips a rock.

Phase 4: Safety and Recovery

The risks in rock crawling are high. Competition rules mandate strict safety standards, and even for recreational crawling, safety is paramount.

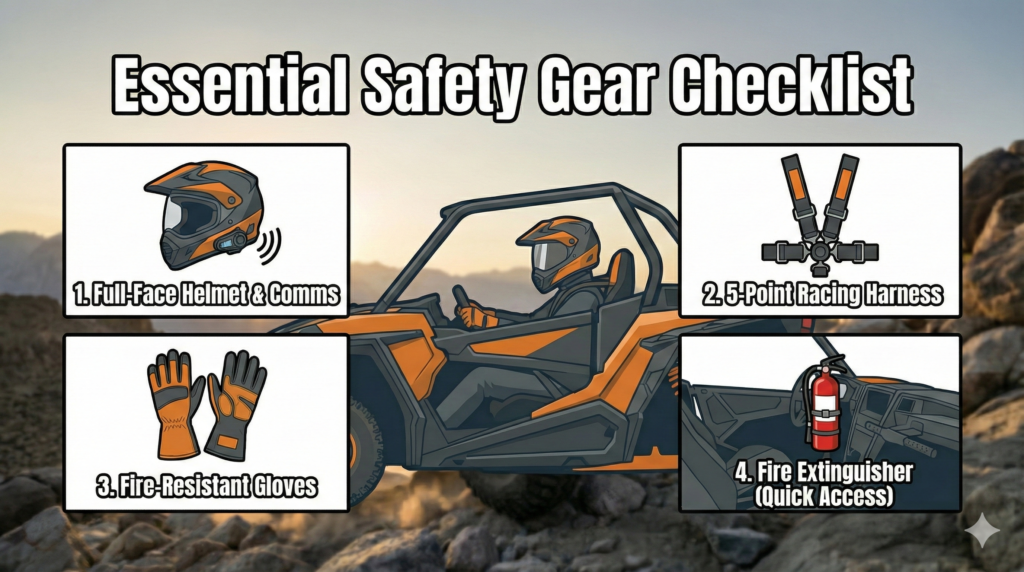

1. Essential Safety Equipment

Roll Cage: A certified, competition-grade roll cage is non-negotiable. It must be builtin to withstand multiple roll-overs.
Harnesses and Seats: Five-point harnesses and high-back racing seats keep the occupants securely in place during extreme angles and impacts.
Winch: A powerful winch is essential for self-recovery and for assisting other competitors. It should be securely mount and regularly maintainer.

2. Driver and Spotter Communication

Clear Communication: In competition, the driver relies heavily on a spotter outside the vehicle to guide them over obstacles. A clear, reliable communication system (like a headset or intercom) is critical for success and safety.
Precision: The spotter’s instructions must be precise, guiding the driver inch by inch to place the tires exactly where they need to be for maximum traction.

Conclusion: Precision Over Power

Rock crawling competition preparations are all about building a machine that prioritizes precision and control over raw speed. It’s a meticulous process of selecting the right tires, tuning the suspension for maximum articulation, and optimizing the gearing for slow, deliberate movement.

The satisfaction of conquering a seemingly impossible rock garden is immense. By focusing on these key modifications and practicing your line choice, you will be well on your way to becoming a true rock warrior.

Slow is smooth, and smooth is fast. Now go crawl!
