When it comes to honda dirt bike beginner safety checklist, getting the right details matters. There is nothing quite like the feeling of your tires leaving the dirt and your suspension fully extending at the crest of a massive whoop section. 🏜️
But achieving that perfect bottomless feel requires more than just bolting on the tallest springs you can find at the local dealership. 🛠️
Today, we are tearing into the actual geometry and valving secrets that separate the casual trail cruisers from the hardcore desert racers. 💨
Before we dive into the heavy mechanical theory, grab these essential Amazon products to keep your rig running flawlessly! 🛒
UTV Shock Rebuild Kits to refresh your damping.

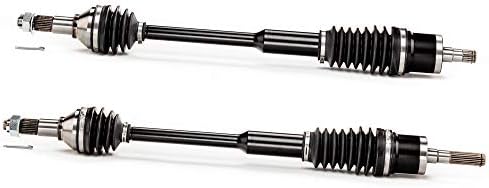

Heavy Duty CV Axles to stop snapping on big articulation.
Cordless Grease Gun Kit to keep those ball joints smooth.
Understanding Unsprung Weight and Inertia
When we talk about suspension performance, the first thing you need to understand is the concept of unsprung mass. ⚖️
Unsprung weight refers to every component that is not supported by the springs, including the wheels, tires, brake calipers, and the outer halves of your axles. 🛞
The heavier your unsprung mass, the harder it is for the suspension to keep the tire planted firmly on the ground over rapid, high-frequency bumps. 📉
This is exactly why upgrading to lightweight beadlock wheels and trimming down your rotating mass makes such a massive difference in trail compliance. 🪶
When the tire can react faster to the terrain, the chassis remains significantly more stable, allowing you to carry much more speed through the rough stuff. 🚀
You also need to consider the rotational inertia of your tires, which acts as a secondary form of unsprung weight that resists changes in speed. 🔄
Massive, heavy mud tires look incredibly aggressive, but they will completely overwhelm your stock shock valving and make the ride feel incredibly harsh. 🌪️
If you are going to run heavy rubber, you absolutely must upgrade to a larger piston shock to generate the necessary damping force to control that extra mass. 🛑
According to the experts over at UTV Driver, reducing unsprung weight by just five pounds per corner can improve small-bump compliance by over twenty percent. 📊
Upgrading to a true dual-rate spring setup with crossover rings completely transforms how the chassis absorbs high-frequency chatter without sacrificing bottom-out resistance. 🌟
The Math Behind the Magic
Let us get a little nerdy and talk about the actual mathematics of spring rate and motion ratio. 🤓
Your motion ratio is the mechanical leverage between the wheel centerline and the shock mount, which dictates how much the shock compresses relative to wheel travel. 📐
If your motion ratio is two-to-one, the wheel moves two inches for every one inch the shock shaft compresses. 📏
This means that a spring that feels incredibly stiff at the shock mount will actually feel much softer at the wheel due to this mechanical leverage. 🧮
When you install a lift kit or change your A-arm length, you alter this motion ratio, which completely changes your effective wheel rate. 📈
This is why you cannot just reuse your old springs when swapping to long-travel arms, or your rig will wallow like a boat in a hurricane. 🌊
You must recalculate your spring rates based on the new geometry to maintain the proper sag and bottom-out characteristics. 🧠
As the team at ATV.com always reminds us, guessing your spring rates is the fastest way to ruin a perfectly good set of shocks. 💡
“Suspension is the only thing separating your rig from being a very expensive, very uncomfortable sled.” 🏆
Shock Valving: Compression vs. Rebound
Now that we have the springs sorted, we need to talk about the oil and the valving that actually controls the movement. 🛢️
Compression damping controls how fast the shock compresses when you hit a bump, while rebound damping controls how fast it extends back out. 🔄
Too much compression damping will cause the tire to deflect off sharp rocks instead of absorbing the impact, resulting in a incredibly harsh ride. 🪨
On the flip side, too little rebound damping will cause the shock to pack down and top out, leaving you bouncing uncontrollably through the whoops. 🦘
High-quality aftermarket shocks use complex stacks of thin metal shims to meter the flow of oil through the piston. 🛠️
The thickness, diameter, and number of these shims determine the exact damping curve at different shaft velocities. 📉
A well-tuned shock will have a digressive valving curve, meaning it provides maximum damping at low shaft speeds for body control, but bleeds off at high shaft speeds to absorb harsh impacts. 🎢
Check out our off-road collection Amazon products
This is why simply turning the clickers on your stock shocks will only get you ten percent of the way to a perfect tune. 🎛️
For the remaining ninety percent, you need to open up the shock and physically re-shim the piston to match your riding style and terrain. 🔧
By lengthening the control arms, you not only increase wheel travel but also dramatically improve the half-shaft operating angles, saving your CV joints from premature death. 🔧
Dialing in the Clickers
Before you even think about touching a wrench, you need to establish a baseline by measuring your static sag. 📏
Static sag is the amount the suspension compresses under the weight of the machine with you and all your gear strapped in. 🎒
You want to aim for about twenty to thirty percent of your total wheel travel for the front, and thirty to forty percent for the rear. 🎯
Adjust your spring preload to hit these numbers before you even look at the compression and rebound clickers. ⚙️
Once your sag is perfect, start with the rebound clickers set right in the middle of their range. 🔄
Ride a familiar section of trail and make small adjustments, usually two clicks at a time, until the chassis feels settled. 🌲
Then, move on to the compression clickers, tuning them to control body roll in the corners and squat under acceleration. 🏎️
Remember that changing the compression will affect the rebound, so you may need to go back and forth between the two to find the sweet spot. ⚖️
| Component | Stock Spec | Upgraded Spec |
|---|---|---|
| Shock Piston Diameter | 36mm | 46mm |
| Spring Rate Front | 150 lbs/in | Dual 110/200 lbs/in |
| Wheel Travel | 10 inches | 14 inches |
Control Arms and Suspension Geometry
Your control arms are the literal link between the chassis and the wheels, dictating the entire kinematic behavior of your suspension. 🔗
Stock arms are designed with strict cost-cutting measures and packaging constraints, resulting in compromised geometry that limits performance. 📉
Upgrading to aftermarket billet aluminum or chromoly steel arms allows you to correct these factory compromises and dial in the exact geometry you need. 🏗️
The most critical adjustment you can make with longer arms is fixing the camber curve throughout the suspension stroke. 📐
When a short arm compresses, the wheel tilts heavily into negative camber, reducing the tire contact patch exactly when you need it most. 📉
Longer arms flatten out this camber curve, keeping the tire flat on the ground and maximizing mechanical grip in deep ruts and off-camber slopes. 🏔️
You also gain the ability to adjust the caster angle, which is crucial for maintaining straight-line stability at high speeds. 🛣️
Too much caster will make the steering incredibly heavy, while too little will make the rig feel twitchy and nervous on fast straights. 🎢
Always use a high-quality digital alignment tool to set your toe and caster after installing new arms, as even a fraction of a degree makes a huge difference. 📏
- Always measure your static sag before making any clicker adjustments to establish a true baseline for your specific riding weight and gear. 📏
- When changing spring rates, you must recalculate your nitrogen preload to maintain the correct bottom-out resistance and prevent coil bind. ⚙️
- Inspect your upper and lower ball joints for play every single weekend, as loose joints will completely mask your suspension tuning efforts. 🔍
- Use a high-quality digital durometer to check your bushing hardness, because degraded rubber will introduce unpredictable deflection under heavy cornering loads. 🛞
- Never mix and match shock brands on the same axle, as the valving profiles will fight each other and destroy your chassis balance. ⚖️
Properly tuning the low-speed compression damping ensures that your rig squats perfectly under hard acceleration, keeping the front tires glued to the terrain for maximum steering authority. 🌲
Fixing the Camber Curve
Let us dive deeper into the camber curve, because this is where most people completely mess up their alignment. 🤦
Camber gain is the rate at which the wheel changes camber angle as the suspension moves through its travel. 📈
In a solid axle setup, the camber remains static, but in an independent suspension, it changes constantly. 🔄
You want a slight amount of negative camber gain to help the chassis roll over the outside tire in high-speed corners. 🏎️
However, if the gain is too aggressive, the inside tire will lift off the ground under braking, drastically reducing your stopping power. 🛑
By carefully selecting the length and mounting points of your upper and lower A-arms, you can sculpt the exact camber curve your chassis needs. ✂️
This is a highly complex process that often requires specialized suspension design software to simulate the kinematics before cutting any metal. 💻
Check out our off-road collection Amazon products
Luckily, the brilliant engineers at Tread Lightly! provide excellent resources on how suspension geometry affects your environmental footprint and trail traction. 🌿
When you get the geometry right, the rig will feel like it is on rails, inspiring massive confidence in the tight, technical sections. 🛤️
“You can have all the horsepower in the world, but if your damping is trash, you will just go faster into the trees.” 🌲
Sway Bars and Roll Center Dynamics
The sway bar, or anti-roll bar, is a critical component that connects the left and right sides of the suspension to reduce body roll. 🔄
When the chassis rolls in a corner, the outside suspension compresses and the inside extends, twisting the sway bar. 🌪️
This twisting action transfers energy from the compressed side to the extended side, effectively stiffening the suspension in roll without affecting the vertical wheel rate. ⚖️
This means you can run a soft spring rate for excellent bump absorption, while still maintaining flat cornering with a thick sway bar. 🏎️
However, a sway bar that is too thick will cause the inside tire to unload completely in deep, uneven ruts, leading to a loss of traction. 📉
This is why adjustable sway bars with multiple mounting holes are an absolute must-have for serious trail riders. 🛠️
You can stiffen the bar for fast desert racing and soften it for slow, technical rock crawling, all without swapping any hardware. 🪨
You also need to consider the roll center height, which is the imaginary point around which the chassis rolls. 📐
If the roll center is too high, the chassis will roll very quickly and feel incredibly twitchy and unstable. 🎢
If it is too low, the chassis will roll slowly but lean excessively, potentially causing the inside tires to lift in extreme situations. 🏔️
Never ignore your sway bar end links, because a worn bushing will introduce sloppy transient handling that no amount of shock tuning can ever fix on the trail. 🔥
Disconnecting for the Deep Stuff
For the ultimate in technical trail performance, many hardcore builders install quick-disconnect sway bar links. 🔗
This allows you to completely disconnect the sway bar when you are crawling over massive obstacles, maximizing your suspension articulation. 🧗
With the bar disconnected, the wheels can move completely independently, keeping all four tires planted on uneven rocks and logs. 🪵
Once you get back to the fast dirt roads, you simply reconnect the links in seconds to regain your high-speed cornering stability. 🛣️
Some advanced systems even use electronic actuators to disconnect and reconnect the sway bar on the fly from the comfort of your seat. 🎮
While these electronic systems are incredibly expensive, they offer a level of versatility that is simply unmatched in the off-road world. 💰
Whether you go manual or electronic, understanding how the sway bar interacts with your spring rate is the key to unlocking your rig’s true potential. 🔑
Always remember to check your tie rod angles after modifying your suspension, as extreme angles can cause binding and premature failure. ⚠️
The folks over at the US Forest Service OHV division always stress that a well-maintained machine is a safe machine on public lands. 🌲
Take the time to learn your rig’s suspension, and it will reward you with years of incredible trail adventures and unforgettable memories. 🏕️
Now get out there, grab your wrenches, and start dialing in that perfect ride! 🛠️
