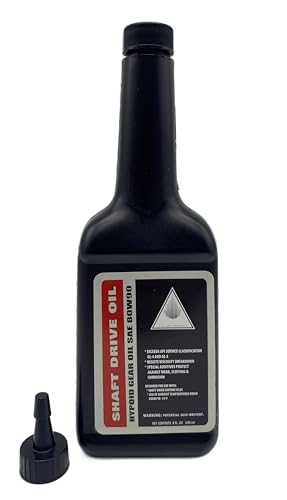

1. Honda Genuine Shaft Drive Oil 80W-90 – The factory-spec choice for longevity.
2. Honda OEM Differential Crush Washers – Prevent leaks with every check.
3. Metric Socket and Ratchet Set – Specifically for those 10mm and 17mm bolts.
Maintaining a Honda Foreman is like tending to a loyal workhorse; it will never let you down if you treat the drivetrain with respect. 💡
Whether you are tackling deep mud in the Southeast or hauling firewood across a snowy farm in 2025, your differential is the heart of your power delivery. 🚜
Knowing how to check differential fluid honda foreman is more than just a maintenance task; it is an insurance policy against the thousands of dollars a gear failure would cost. 💰
Recent data from the 2024 and 2025 Honda service cycles suggests that nearly 40% of early-stage differential failures in TRX models are caused by undetected water contamination. 💧
Essential Tools for the Job
Before you get your hands dirty, you need to gather the right arsenal of tools. 🛠️
Honda uses standard metric sizes, so you will likely already have these in your toolbox, but precision is key to avoid stripping the aluminum housings. 📌
- 17mm socket or wrench for the front fill plug.
- 10mm socket or wrench for the rear check bolt and drain plugs.
- 12mm socket for removing any skid plate covers that might be in your way.
- A clean rag to wipe away debris before opening any orifices.
- A funnel or a specialized fluid pump for those tight spaces.
https://www.youtube.com/watch?v=S8YwYjF6pM0
How to Check Front Differential Fluid
The front differential on the Honda Foreman TRX520 and TRX420 models is a robust unit, but it is also the most susceptible to water intake when splashing through creeks. 🌊
First, ensure the ATV is on a level surface to get an accurate reading. 📏
Check out our off-road collection Amazon products

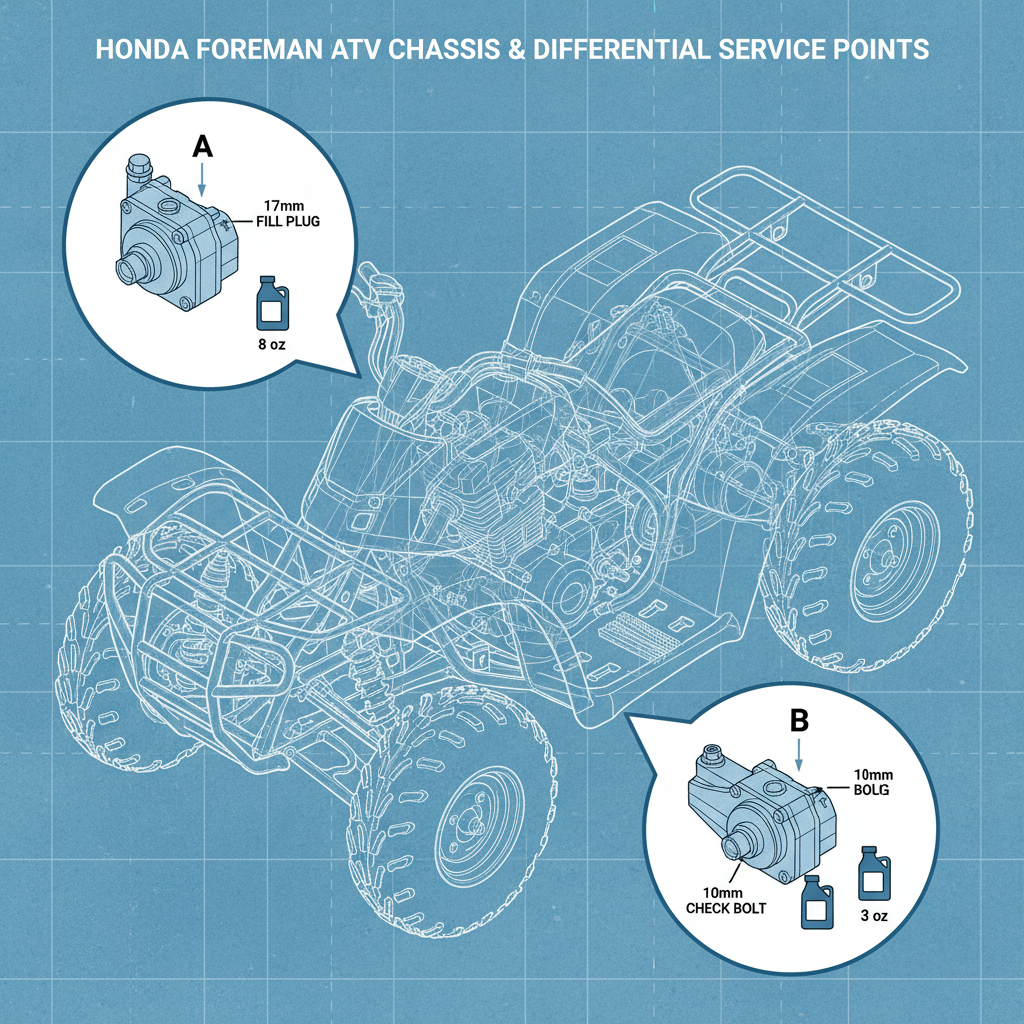

Locate the large 17mm fill plug on the right side (passenger side) of the front differential housing. 🔍
Before removing the plug, use a brush or compressed air to remove every speck of dirt around the seal to prevent internal contamination.
Unscrew the 17mm plug and look inside; the fluid should be level with the bottom of the filler hole threads. 🔧
If you cannot see the fluid, dip a clean zip-tie or finger inside to check the level. ☝️
If the fluid looks milky or like chocolate milk, this indicates water contamination and requires an immediate flush and change.
Checking the Rear Differential Level
The rear differential on the Foreman is slightly different because it uses a specific “check bolt” rather than just the fill hole. 🧐
On the rear housing, you will find a small 10mm bolt located on the side of the differential, distinct from the larger fill cap on top. 📍
Slowly remove this 10mm check bolt; if a small amount of oil trickles out, your level is perfect. ✅
If nothing comes out, you will need to add Honda Shaft Drive Oil through the top fill port until it begins to weep out of the check hole. 🧪
“A well-lubricated Honda is a machine that will outlive its owner.”
https://www.youtube.com/watch?v=r_v6_o0l-9E
Fluid Specifications and Capacities
Using the wrong fluid is one of the quickest ways to ruin your 2025 Honda Foreman’s performance. ⚠️
Honda specifies a high-quality SAE 80 Hypoid Gear Oil, specifically GL-5 rated. 🛢️
| Component | Fluid Type | Approx. Capacity |
|---|---|---|
| Front Differential | SAE 80 Hypoid (GL-5) | 8.0 oz (240ml) |
| Rear Differential | SAE 80 Hypoid (GL-5) | 3.0 oz (90ml) |
| Drain Plug Torque | N/A | 9-10 lbf·ft |
For more official details on specific torque settings for newer models, visit the Honda Powersports Official Site. 🌐
When to Check and Change
According to the 2025 Honda maintenance schedule, you should perform a visual check every 100 hours of operation or 600 miles. ⏱️
If you ride in extremely wet or muddy conditions, checking the fluid after every major outing is highly recommended by veteran enthusiasts.
Differential oil should be completely replaced every 2 years regardless of mileage to prevent oxidation and additive breakdown. 📅
Check out our off-road collection Amazon products
If you find metal shavings on the magnetic drain plug, it may indicate gear wear that requires a more thorough inspection. 🔍
https://www.youtube.com/watch?v=A2j097yN8sM
Expert Tips for Success
Always replace the crush washers when you perform a full fluid change. 💿
These tiny aluminum or copper rings are designed to deform once and create a perfect seal; reusing them often leads to slow, annoying drips. 💧
Never over-tighten the fill or drain bolts, as the aluminum differential housing can strip easily, leading to a very expensive repair bill.
For high-performance needs, some riders prefer AMSOIL Synthetic Gear Lube for better heat dissipation during heavy towing. 🚀
For specific OEM replacement parts and diagrams, Partzilla is an excellent resource for Foreman owners. 📦
If you need further guidance on the full maintenance suite, the Honda Owner’s Manual portal provides digital copies for all recent models. 📖
Lastly, checking out Rocky Mountain ATV/MC can provide you with the latest aftermarket seals and bearings if you find a leak. 🛠️
“Maintenance is the difference between a weekend on the trail and a weekend in the garage.”
Now that you know how to check differential fluid honda foreman, you are ready to hit the trails with absolute confidence. 🌲
Keep those gears swimming in clean oil, and your Honda will continue to be the most reliable tool in your shed for years to come. 🌟
Happy riding, and stay dirty! 🏁
