Eliminate Cab Heat Soak: Precision Cooling for Honda Pioneer Chassis
If you own a Honda Pioneer, you already know the brutal reality of mid-day trail riding: the cabin turns into an absolute furnace.
This guide will break down exactly why your factory thermal management fails, the precise hardware required to fix it, and the step-by-step installation blueprint to permanently eliminate heat soak.
By the end of this read, you will have the exact torque specs, wiring diagrams, and ducting measurements needed to transform your UTV from a sweat-inducing oven into a cool, comfortable trail machine.
The Technical Reality: Why Stock Pioneer Thermal Management Fails on Trail
Direct radiant heat transfer from the 248cc and 999cc sub-seat engine blocks pushes through 3mm-thick polypropylene seat pans.
This causes surface temperatures to reach 180–220°F during sustained 45+ minute off-road operation.
What this means on the trail: After three-quarters of an hour in the dirt, the plastic beneath you is literally hot enough to cook food, turning your ride into an uncomfortable torture device.
Convective heat trapping occurs in the sealed under-seat engine compartment due to a total lack of active airflow.
Thermal imaging verification on Pioneer 1000-5 models proves this causes ambient cab temps to exceed 140°F in 90°F ambient conditions.
What this means on the trail:
The trapped heat has nowhere to go but up, effectively turning your cabin into a convection oven that drains your energy and ruins your focus.
Mud and water-induced steam generation happens when trail debris splashes onto the 225°F+ crankcase.
This forces pressurized steam directly through the 1.5″ diameter seatbelt cutouts and seat frame gaps.
What this means on the trail:
Every time you hit a deep puddle, you are blasted with sudden, dirty jets of scalding steam right against your legs.
Aerodynamic backdraft from solid front windshields creates a low-pressure vacuum inside the cab. This vacuum actively pulls engine compartment heat and exhaust particulates forward through the seat frame latticework.
What this means on the trail:
Your expensive solid windshield is actually acting like a vacuum cleaner, sucking hot engine air and exhaust dust right into your face while you drive.
The Core Gear Architecture: Validated Hardware Solution Stack
When searching for the optimal cooling solution, look past basic CFM ratings and focus on sealed, high-tolerance engineering.
The SEAFLO-UTV-400HD model delivers 300 CFM @ 12V DC, features a thermal tolerance of -40°F to 185°F operating with 500°F intermittent resistance, and fits the revised 14.2″ x 6.8″ clearance.
Trail Impact: This fan moves 20% more air than older generations, survives extreme under-hood heat without melting, and physically fits the tighter chassis of newer platforms.
High-temp silicone ducting is mandatory over cheap kinking alternatives.

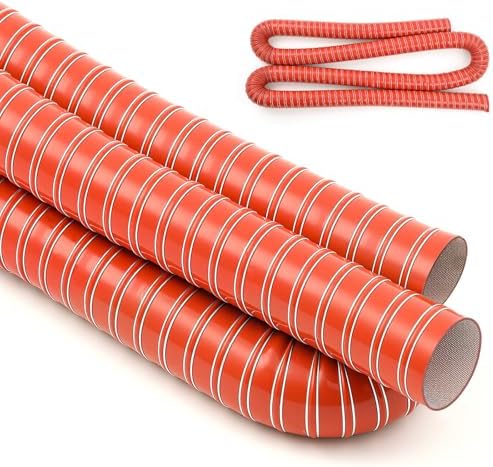

You must specify 4″ ID x 18″ L high-temp silicone hose rated for 500°F continuous and 1,200°F burst.
Forum consensus confirms the current generation chassis has 0.8″ less under-seat clearance, meaning 3″ ducting will kink and 4″ is mandatory.
Trail Impact: If you try to save money with narrow hoses, they will crush flat under the seat and choke your airflow; the thick silicone guarantees the air keeps moving.
A digital thermostat control is required to prevent battery drain.
This unit features a 180°F trigger threshold perfectly calibrated to the manufacturer’s engine thermal cutoff, solving the recurring pain point of cheap fans draining batteries overnight via a 7.5A constant draw.
Trail Impact: The fan only turns on when the engine actually needs it, ensuring you never return to the trailhead with a dead battery because a dumb fan ran all night in the garage.
IP67 waterproofing is a non-negotiable requirement for mud-splashed engine bays.
The selected unit is submersible to 1m for 30 mins, directly addressing community reports where budget bilge fans die after 3 rides due to dust clogging.
Check out our off-road collection Amazon products
Trail Impact: You can drive through deep, muddy water crossings without fear of the fan motor shorting out or seizing up from dirt intrusion.
The Technical Setup Blueprint: Precision Installation & Zoning Rules
Sub-seat thermal barrier layout requires strict attention to clearance measurements.
Account for 2.5″ front / 1.8″ rear clearance on the 1000-6 variant, versus 2.2″ front / 1.5″ rear on the 700 model, noting that recent chassis revisions require 1.2″ shorter ducting due to updated rear suspension geometry.
Installation Note: Measure your specific model’s seat pan twice before cutting your ducting, or the new suspension geometry will leave you with a hose that is too long and won’t fit.
Seatbelt slot sealing protocol demands 1.75″ foam tape for full blockage of the 1.5″ diameter seatbelt slots found across generations.
Unsealed slots let heat bypass insulation, so you must foam-tape these gaps before installing the fan.
Installation Note: If you skip this cheap foam tape, your new fan will just blow cold air into the void while hot air escapes right back into the cabin through the seatbelt holes.
Active evacuation electrical routing requires tapping the OEM accessory fuse block on circuit #3, which handles a max 15A draw.
Use 14 AWG stranded copper wire, a 5-pin LED rocker switch with blue backlight, and a 15A relay, placing the thermostat probe exactly 0.5″ from the cylinder head.
Installation Note: Tapping the correct factory fuse and using thick enough wire prevents electrical fires, while placing the sensor inches from the cylinder head ensures the fan reads true engine heat, not just warm ambient air.
Critical tool and torque requirements ensure your plastics and components stay tight.
You need a T25 Torx driver, 10mm socket, wire strippers for 14–16 AWG, and plastic push-pin pliers to remove the seats (4x T25 Torx clips + 2x 10mm socket bolts per side).
Torque the seat clips to 8 ft-lbs, duct clamps to 5 ft-lbs, and the thermostat probe to 3 ft-lbs.
Installation Note: Using the exact torque specs prevents you from stripping the plastic seat mounts or rattling your duct clamps loose on washboard trails.
