When it comes to homemade utv trailer build, getting the right details matters. Building a custom trailer for your Honda Pioneer isn’t just about saving money; it’s about engineering a machine that matches the rugged capability of your UTV. Whether you are hauling firewood across the farm or packing gear for a week-long overlanding trip in the backcountry, a stock utility trailer often lacks the clearance and durability required for serious off-road abuse. This guide will walk you through the critical engineering decisions, safety statistics, and fabrication steps needed to construct a beast that trails your Pioneer effortlessly.
The “Why” Behind a Homemade Build
Stock trailers are typically built for pavement. They have solid axles that catch on rocks, small tires that sink in mud, and suspension systems that bounce violently on washboard roads. By choosing a homemade UTV trailer build, you gain control over every variable, ensuring your rig can handle the same terrain as your Honda Pioneer 1000 or 700.
Recent trends in 2025 show a massive shift toward “Overland” style builds, where enthusiasts are equipping small trailers with roof-top tents and pull-out kitchens.
The most significant advantage of a DIY build is the ability to match your trailer’s track width to your Pioneer. If your trailer wheels follow the exact line of your UTV, you are less likely to snag a fender on a tree or clip a boulder in a tight technical section. This tracking ability is nearly impossible to find in mass-produced trailers.
Critical Engineering Statistics
Before you strike an arc with your welder, you must understand the physics of towing. A poorly balanced trailer is not just annoying; it is dangerous.
According to the National Highway Traffic Safety Administration (NHTSA), there are approximately 50,000 hitch-related accidents annually, many caused by improper weight distribution.
Your “tongue weight”—the downward force the trailer tongue exerts on your Pioneer’s hitch—should be between 10% and 15% of the total loaded trailer weight. If you are building a trailer intended to haul 1,500 lbs, your tongue weight needs to be around 150-225 lbs. Too little weight causes dangerous sway (fishtailing), while too much weight lifts your Pioneer’s front tires, destroying your steering traction.
https://www.youtube.com/watch?v=Je_WZbFkQ60
Check out our off-road collection Amazon products

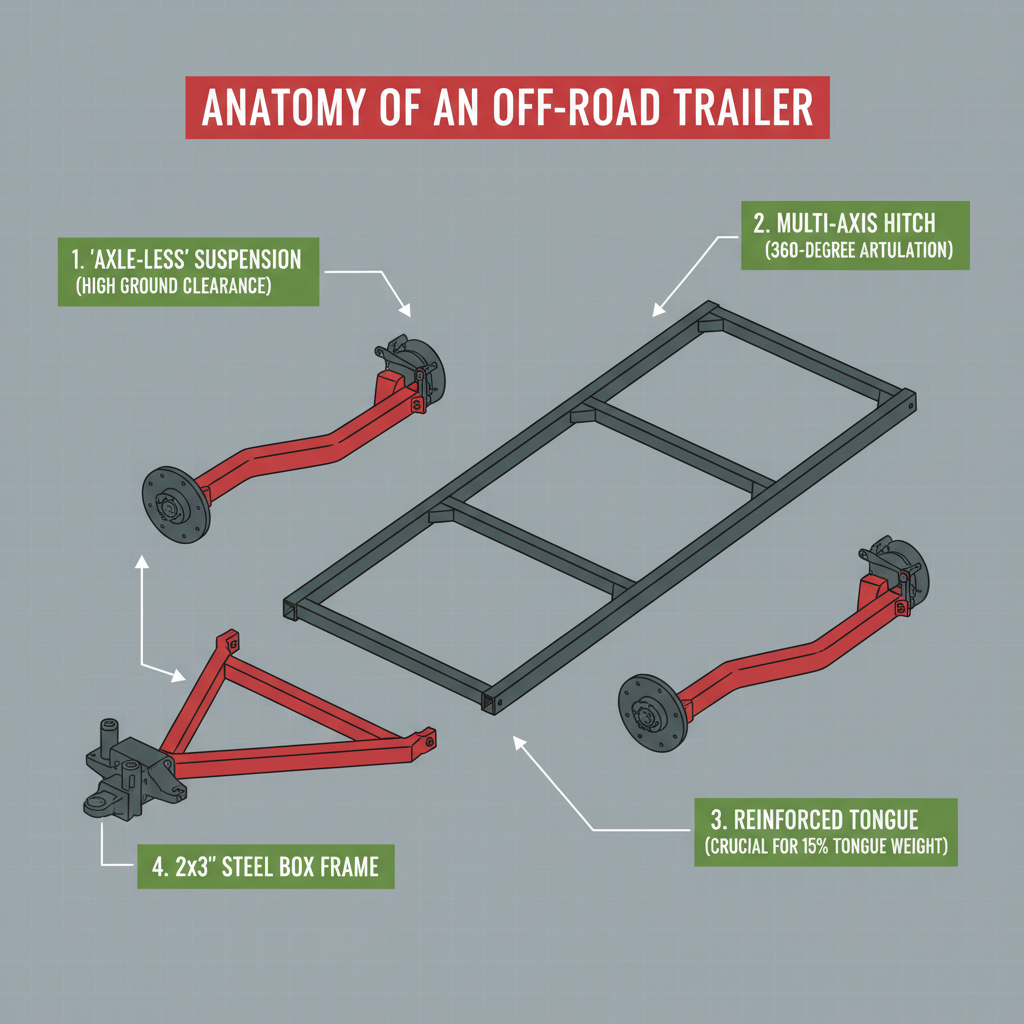

Choosing the Right Suspension
The suspension is the heart of an off-road trailer. Traditional leaf springs are durable but noisy and limit your ground clearance because the solid axle spans the entire width of the trailer, acting as a low-hanging plow for rocks.
For a truly capable homemade UTV trailer build, the Timbren Axle-Less suspension system has become the gold standard in 2026, offering nearly double the ground clearance of a straight axle.
These independent suspension units bolt directly to the side of your frame, eliminating the cross-tube entirely. This means your trailer has as much center ground clearance as your Pioneer. They also utilize rubber springs that provide a progressive ride, soaking up small bumps without the harsh rebound of metal leaf springs.
| Feature | Solid Axle (Leaf Springs) | Independent (Timbren/Torsion) |
|---|---|---|
| Ground Clearance | Low (Axle tube limits clearance) | High (No cross-axle tube) |
| Ride Quality | Bouncy, noisy on trails | Smooth, quiet, progressive |
| Cost | $150 – $300 | $600 – $900 |
| Installation Difficulty | Moderate (Requires precise alignment) | Easy (Bolts to frame rails) |
Honda Pioneer Towing Capacities
When designing your frame, you must stay within the limits of your machine. Overbuilding a trailer that weighs 2,000 lbs empty is a mistake if your UTV can only tow 1,000 lbs safely.
- Honda Pioneer 1000 / 1000-5: 2,500 lbs towing capacity. This allows for a robust steel frame and heavy overland gear.
- Honda Pioneer 700: 1,500 lbs towing capacity. You should aim for a lighter build, perhaps using thinner wall square tubing or an aluminum deck.
- Honda Pioneer 500 / 520: 1,000 lbs towing capacity. This requires a minimalist build, strictly for hauling game or light yard work.
“The bitterness of poor quality remains long after the sweetness of low price is forgotten.” – Benjamin Franklin (Applicable to cheap trailer parts!)
The Frame and Hitch Connection
For the main frame rails, 2″ x 3″ rectangular steel tubing with a 1/8″ wall thickness is the industry standard for UTV trailers. It provides immense torsional rigidity without adding unnecessary weight. Avoid using angle iron for the main structure, as it flexes too much under off-road stress.
A standard ball hitch is your enemy on the trail; it only offers about 15-20 degrees of articulation before it binds and potentially flips your trailer.
You absolutely need a multi-axis off-road hitch, such as a “Lock N’ Roll” or “Max Coupler.” These hitches allow for 360 degrees of rotation and extreme vertical angles, ensuring that even if your Pioneer is twisting through a ravine, your trailer remains stable and attached.
https://www.youtube.com/watch?v=HuWq4dkWf3Y
Step-by-Step Build Overview
1. Design & Cut: Lay out your 2×3 tubing on a flat garage floor. Ensure your frame width matches your Pioneer’s width (usually around 60-64 inches). Cut 45-degree miters for the corners for a professional look and stronger weld.
2. Weld & Square: Tack weld your corners first. Measure diagonally from corner to corner; if the measurements are identical, your frame is perfectly square. Fully weld the joints only after confirming this squareness.
Check out our off-road collection Amazon products
3. Suspension Mount: If using Timbren units, reinforce the frame section where they bolt on. A simple 1/4″ steel plate welded to the outside of the frame rail adds the necessary rigidity.
4. Tongue Fabrication: The tongue should extend far enough to allow you to jackknife the trailer 90 degrees without hitting the Pioneer’s rear tires. A single 2.5″ or 3″ square tube running down the center is often stronger and lighter than an A-frame design for small trailers.
5. Decking & Paint: Expanded metal mesh is great for drainage and cleaning (mud falls right through), while marine-grade plywood offers a smoother surface for camping gear. Finish with a bed-liner spray for maximum rust protection.
https://www.youtube.com/watch?v=7uC2s4QyK-c
Tires and Hubs
Try to match your trailer hubs to your Pioneer’s bolt pattern (typically 4x137mm for Honda). This allows you to carry just one spare tire that fits both the machine and the trailer. Using the same 27″ or 28″ tires on the trailer as your UTV also increases ground clearance and helps the trailer “float” over obstacles rather than digging in.
“Measure twice, cut once, and weld it like your life depends on it—because on a steep trail, it just might.”
Building your own trailer is a rewarding project that extends the utility of your Honda Pioneer tenfold. By focusing on independent suspension, proper weight balance, and articulating hitches, you create a tow-behind partner that is ready for anything the trail throws your way.
For more detailed specifications on Honda towing capacities, check out the official Honda Powersports website. If you are looking for top-tier trailer suspension parts, Timbren Industries is the go-to source. For safety regulations and towing laws, visit the NHTSA. Off-road fabrication tips can often be found on Miller Welds. Finally, for community advice, the Honda SXS Club is an invaluable resource.
🔍 Explore More: See all Wild Testing guides for homemade utv trailer build.
Check out our off-road collection Amazon products

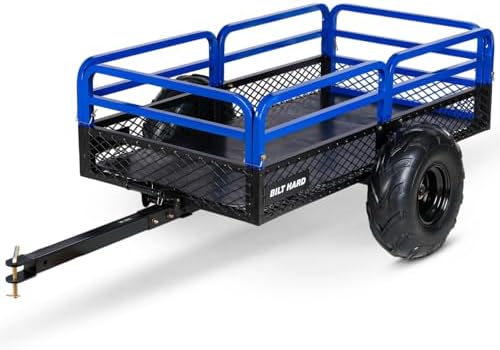

- High Capacity Trailer: Our ATV metal trailer can carry up to 1,500 lb of cargo, featuring railings on all four sides and…
- Exceptional Comfort and Durability: The 16″ × 8‑7″ pneumatic tires deliver superior shock absorption, ensuring smooth ma…
- Reinforced Steel Construction: The pipe wall thickness has been increased to 0.05″, the main trailer frame to 2″ × 2″, a…

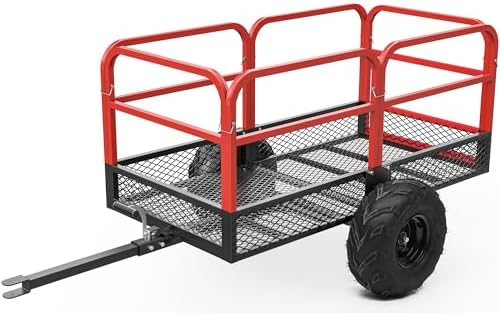

- Extra-high Guardrails: Compared to other ATV trailer, which is only 10 inches taller fence, YITAMOTOR guardrails have be…
