For the dedicated Honda Pioneer enthusiast, the transition from standard rims to beadlock wheels is a rite of passage.
It marks the difference between a casual trail rider and a serious off-roader ready to tackle technical rock gardens, deep sand dunes, and mud pits with low tire pressures.
However, the mechanical advantage of a beadlock wheel is entirely dependent on proper installation and maintenance.
If you fail to adhere to the correct beadlock ring torque specs, you risk snapping bolts, leaking air, or completely losing a tire bead miles from the nearest trailhead.
In 2026, the aftermarket wheel industry has standardized many specifications, but variances still exist between brands like Method, System 3, and STI.
This guide will walk you through the exact specifications, the crucial “star pattern” tightening sequence, and the maintenance routines necessary to keep your Honda Pioneer 1000, 700, or 500 safe on the trail.
Why Beadlock Torque Specs Matter More Than You Think
Unlike a standard automotive wheel where air pressure seats the bead, a beadlock wheel uses a mechanical ring to clamp the tire’s outer bead to the wheel face.
This clamping force must be distributed perfectly evenly across the entire circumference of the wheel.
If one bolt is over-tightened, it can warp the ring or crack the aluminum wheel threads.
If a bolt is too loose, the clamping force is compromised, leading to slow leaks or catastrophic bead failure under side-load.
Many new owners make the mistake of using an impact gun to “zip” these bolts on, which is the fastest way to strip the delicate aluminum threads of the wheel can.
Precision is key, and that means using a calibrated torque wrench and following a specific protocol.
Check out our off-road collection Amazon products
Comprehensive Beadlock Ring Torque Specs Chart
Below is the most up-to-date data for 2026 regarding the most popular beadlock wheels used on Honda Pioneers.
Always verify with your specific wheel’s manual, as manufacturing tolerances can change.
| Wheel Brand | Wheel Size | Torque Spec (ft-lbs) | Notes |
|---|---|---|---|
| Method Race Wheels | 12″ – 14″ | 10 – 12 ft-lbs | Do not exceed 15 ft-lbs on smaller rims. |
| Method Race Wheels | 15″ and larger | 20 – 25 ft-lbs | Larger hardware allows for higher torque. |
| System 3 Off-Road | All UTV Sizes | 15 ft-lbs | Consistency is critical for System 3 rings. |
| STI Powersports (HD Series) | 14″ / 15″ | 12 – 15 ft-lbs | Older HD5 models often preferred 12 ft-lbs to avoid breakage. |
| Tusk (Rocky Mountain ATV) | All Sizes | 17 – 20 ft-lbs | Spec is slightly higher; ensure bolts are Grade 8. |
| Valor Offroad | 14″ / 15″ | 18 ft-lbs | Start at 10 ft-lbs, finish at 18 ft-lbs. |
| Raceline Wheels | All Sizes | 18 – 20 ft-lbs | Check for “gap” or “no gap” instructions specific to model. |
The Step-by-Step Installation Protocol
Installing a tire on a beadlock wheel is not a five-minute job.
It requires patience and a systematic approach to ensure safety.
1. Preparation and Inspection
Before you even touch a bolt, ensure the wheel surface and the tire bead are spotlessly clean.
Any mud, sand, or old rubber stuck between the ring and the tire will create a false torque reading and lead to air leaks later.
2. Lubrication: The Great Debate
Should you use Anti-Seize or Loctite?
Most wheel manufacturers (like Method and System 3) strongly recommend using Anti-Seize on the bolt threads.
This prevents the steel bolt from seizing inside the aluminum wheel due to galvanic corrosion or heat cycles.
However, some riders prefer Blue Loctite to prevent backing out; if you choose Loctite, you must be extremely vigilant about retorquing, as the thread locker can mask a loose bolt.

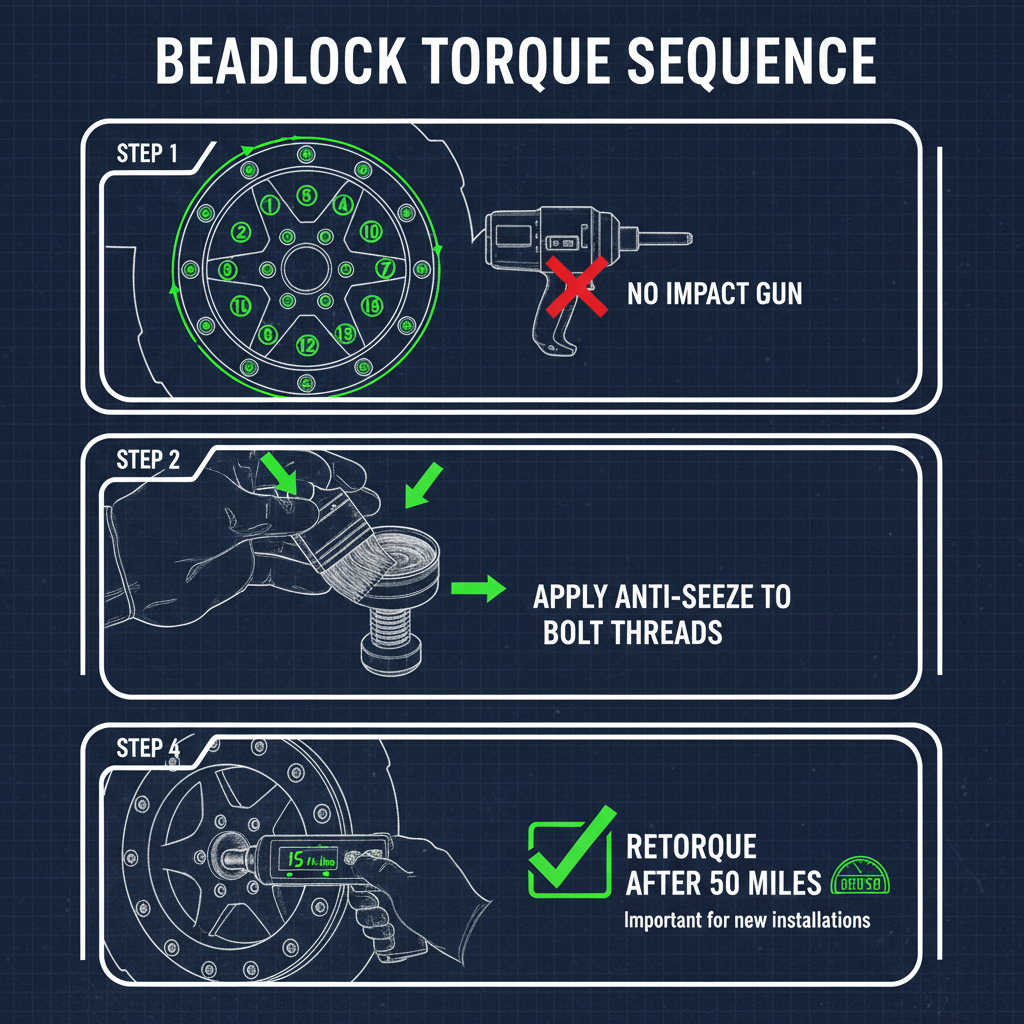

3. The Tightening Sequence
Never tighten bolts in a circle (1, 2, 3, 4…).
You must use a Star Pattern (or Criss-Cross pattern), similar to tightening lug nuts on a truck.
This pulls the ring down evenly, compressing the tire bead without warping the ring.
Start all bolts by hand to ensure no cross-threading occurs.
4. The Three-Stage Torque
Do not go straight to the final torque spec.
Stage 1: Hand tighten all bolts with a socket until the ring just touches the tire.
Stage 2: Torque all bolts in a star pattern to approx 5-7 ft-lbs.
Stage 3: Torque all bolts in a star pattern to the final specification (e.g., 12 or 15 ft-lbs).
Check out our off-road collection Amazon products
“Torque is not just about tightness; it is about the clamping force that keeps you alive on the mountain.”
Maintenance: The 50-Mile Rule
The rubber bead of a tire will compress and “settle” after the first few heat cycles of driving.
This means your bolts will be loose after your first ride.
It is mandatory to re-check every single beadlock bolt after the first 50 miles of use.
You will often find that they have lost 2-5 ft-lbs of torque purely due to the rubber compressing.
After this initial break-in, check them before every major trip or at least every 250 miles.
Common Mistakes to Avoid
Even experienced mechanics can mess up beadlocks if they are rushing.
- Using an Impact Wrench: Never use an impact gun for final tightening. The hammering action can over-torque bolts instantly or snap the heads off Grade 8 hardware.
- Ignoring the Gap: Some wheels are designed to have a small gap between the ring and the wheel face when fully torqued (the tire bead fills this space). Others are designed to “bottom out.” Read your specific manual to know which type you have.
- Over-Torquing: thinking “tighter is better” is dangerous. Over-torquing stretches the bolts beyond their yield point, making them weak and prone to snapping under load.
- Reusing Damaged Hardware: If a bolt looks stretched, rusted, or cross-threaded, replace it immediately. It’s a cheap insurance policy for your expensive wheel.
“A standardized torque sequence is the mark of a professional; guessing is the mark of a gamble.”
