As a proud owner of a Honda Pioneer 1000-5, you understand the importance of regular maintenance to ensure your side-by-side performs reliably on every adventure.
One of the most crucial aspects of UTV upkeep is timely oil and filter changes.
It’s not just about pouring in any oil; it’s about using the right type and amount to protect your engine and transmission, especially with the Pioneer’s sophisticated Dual Clutch Transmission (DCT).
In this comprehensive guide, we’ll dive deep into the specifics of oil and filter requirements for your Honda Pioneer 1000-5.
We’ll cover everything from recommended oil types and viscosities to exact capacities and essential part numbers for both engine and DCT filters.
Let’s get your Pioneer running like new!
Videos are added as random thoughts 💠💠ðŸ’
Understanding Your Honda Pioneer 1000-5’s Oil Needs
The Honda Pioneer 1000-5 is a robust machine designed for demanding conditions.
Its engine and DCT require specific lubricants to function optimally and prevent premature wear.
Using the wrong oil can lead to serious issues, including clutch slippage, reduced performance, and even engine damage.
That’s why paying close attention to Honda’s recommendations is paramount.
The Right Oil Type: More Than Just a Number
When it comes to selecting engine oil for your Honda Pioneer 1000-5, there are a few key specifications you need to look for.
First and foremost, Honda recommends an API Service Classification SJ or higher.
However, there’s a critical caveat: avoid oils labeled as “Energy Conserving”.
These oils often contain friction modifiers that can negatively impact wet clutch performance, which is vital for your Pioneer’s DCT system.
Beyond the API rating, your oil must be JASO MA or MA2 certified.
This certification specifically indicates that the oil is suitable for motorcycles and UTVs with wet clutch systems, ensuring proper clutch engagement and preventing slippage.
Many experienced Pioneer owners on forums often discuss the merits of various JASO MA/MA2 certified oils, highlighting their importance for the longevity of the DCT [1, 2].
For viscosity, 10W-30 or 10W-40 are generally recommended, with 10W-40 being a popular choice for warmer climates or if temperatures rarely drop below -10°F.
Some popular and trusted choices among Pioneer owners include Honda GN4 10W-40 (often considered the factory fill) and Shell Rotella T6 5W-40 synthetic oil[3].
Always check your owner’s manual for the most precise recommendations for your specific model year and operating conditions.

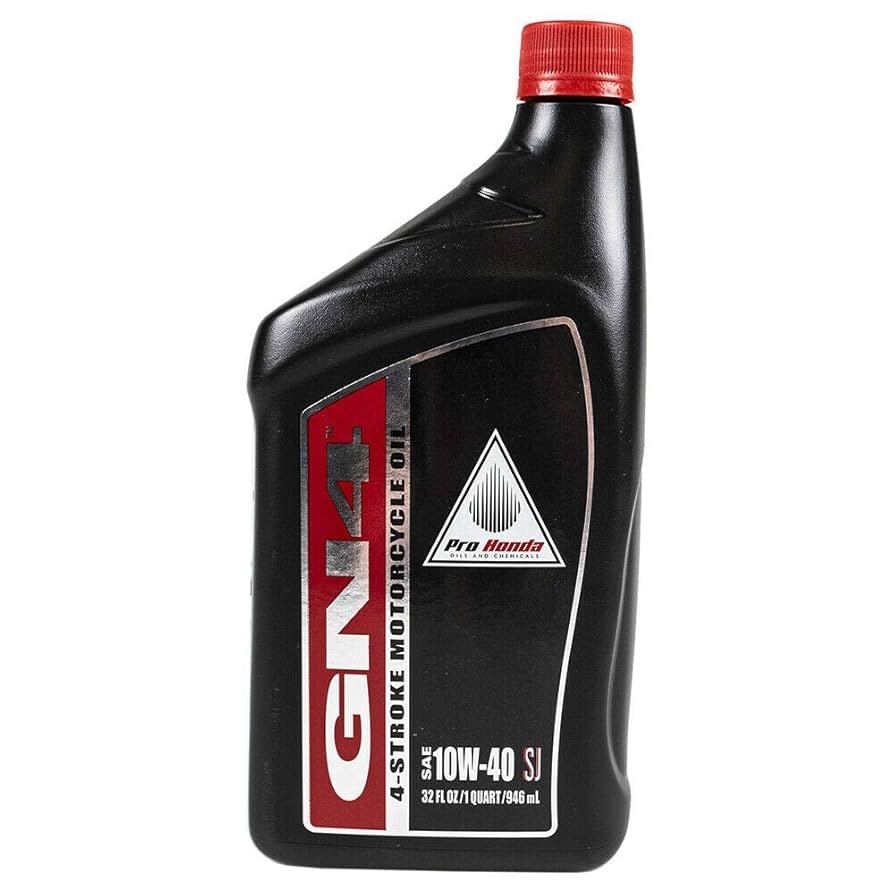

Here’s a quick look at a bottle of Honda GN4 10W-40, a common choice for many Honda UTV owners:
Oil Capacity: Getting the Measurement Just Right
Knowing the correct oil capacity is crucial for an oil change.
Overfilling or underfilling can both lead to problems.
For the Honda Pioneer 1000-5, when performing an engine oil and DCT oil filter change, the capacity is approximately 6.1 US quarts (5.8 liters).
It’s worth noting that some sources, like Partzilla, suggest a capacity of 6.8 quarts when using Honda GN4 10W-40 motor oil [4].
This slight variation might be due to different measurement methods or model year specifics, so always double-check your dipstick and owner’s manual.
It’s a good practice to add oil gradually and frequently check the dipstick to ensure you reach the correct level without overfilling.
Remember, the goal is to be within the recommended range on the dipstick after the engine has been run and allowed to sit for a few minutes.
The Importance of Quality Filters

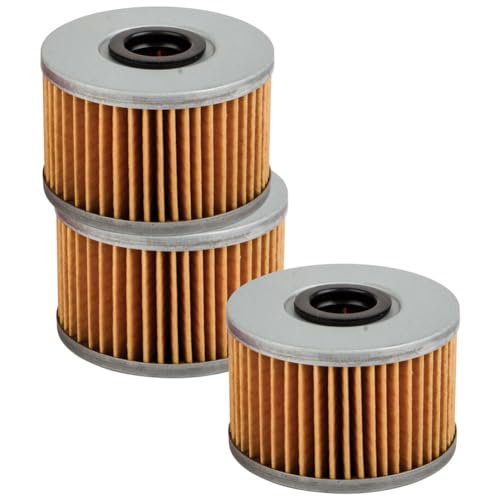

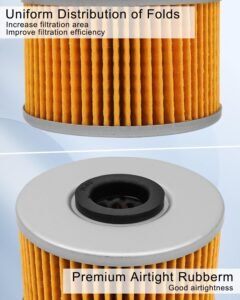

Just as important as the oil itself are the filters.
Your Honda Pioneer 1000-5 has two critical filters that need regular attention: the engine oil filter and the DCT oil filter.
These filters trap contaminants and debris, preventing them from circulating through your engine and transmission, which could cause significant damage.
Essential Filter Part Numbers
Using genuine Honda parts or high-quality aftermarket equivalents is always recommended.
Here are the key part numbers you’ll need for your oil and filter change:
Engine Oil Filter: 15412-HP7-A01
DCT Oil Filter: 15412-MGS-D21
These part numbers are widely recognized and can be found on various parts websites and forums [5].
Having these on hand before you start your oil change will save you time and ensure you have the correct components.

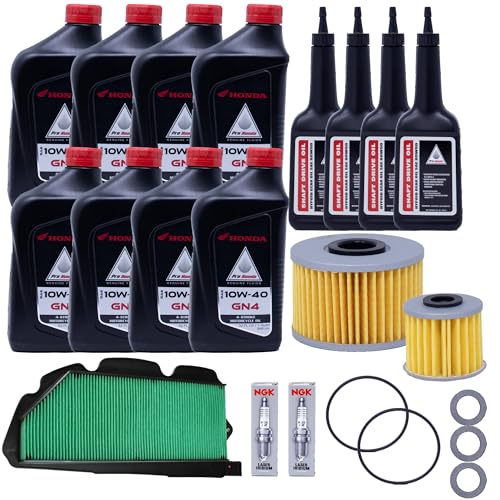

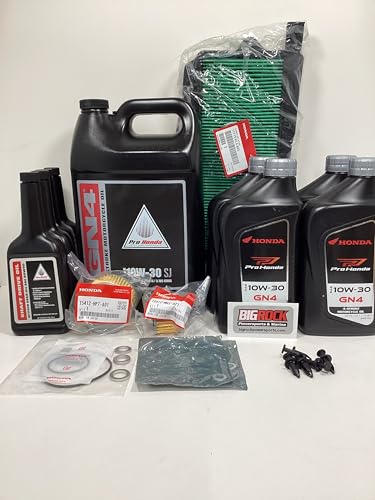

Here’s an example of an oil filter kit, often including both filters and other necessary components:

Step-by-Step Oil Change Overview (General Guidance)
While this blog post focuses on the specifications, a brief overview of the oil change process can be helpful.
Always refer to your owner’s manual for detailed, model-specific instructions.
1.Warm-up the Engine: Run the engine for a few minutes to warm the oil, allowing it to drain more easily.
2. Locate Drain Plugs: Identify the engine oil drain plug and the DCT oil drain plug. Place a suitable drain pan underneath.
3. Drain Oil: Remove the drain plugs and allow all the oil to drain completely. Inspect the drain plugs for any metal shavings, which could indicate internal wear.
4. Replace Filters: Remove and replace both the engine oil filter and the DCT oil filter.
Ensure new O-rings and gaskets are properly seated.
5. Reinstall Drain Plugs: Clean the drain plugs and reinstall them with new crush washers, tightening to the manufacturer’s specified torque.
6. Refill Oil: Add the recommended amount of fresh, specified oil through the fill cap. Add gradually and check the dipstick frequently.
7. Check Level: Start the engine and let it run for a few minutes.
Turn it off, wait a few minutes for the oil to settle, and then recheck the oil level on the dipstick. Adjust as necessary.
Visualizing the Key Specifications

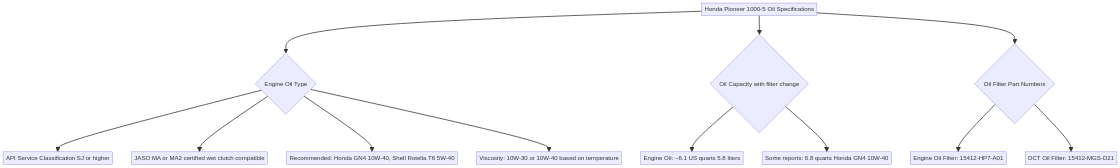

To make things even clearer, here’s an infographic summarizing the critical oil and filter specifications for your Honda Pioneer 1000-5:
Zoom it 😮Â
Why Regular Maintenance Matters
Neglecting oil and filter changes can lead to a host of problems, from decreased fuel efficiency and reduced power to costly engine and transmission repairs.
Regular maintenance, as outlined in your owner’s manual, extends the life of your UTV, maintains its performance, and ensures your safety on the trails.
It’s a small investment of time and money that pays off significantly in the long run.

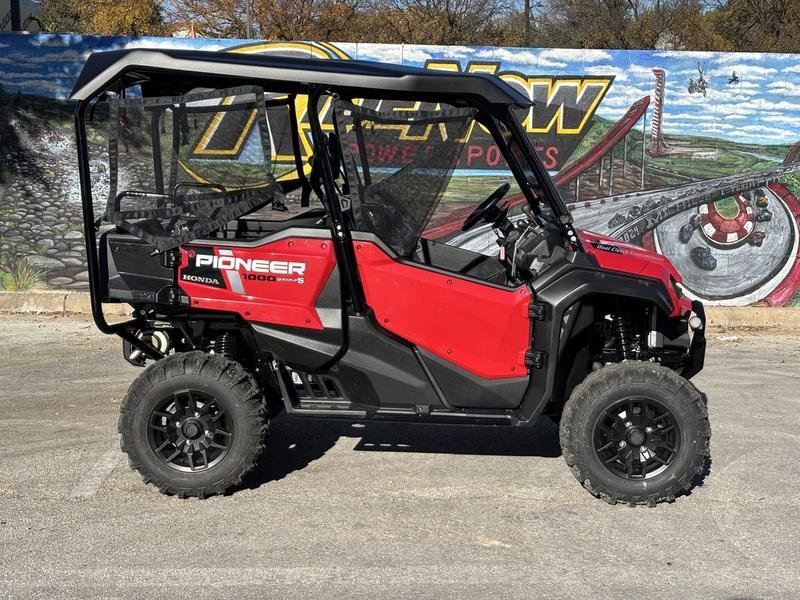

Consider these images of the Honda Pioneer 1000-5 in action – a testament to the adventures that await when your machine is well-maintained:
Conclusion
Performing oil and filter changes on your Honda Pioneer 1000-5 might seem like a daunting task, but with the right information and tools,
it’s a manageable and rewarding part of UTV ownership.
By using the correct oil type, capacity, and genuine filters, you’re not just doing maintenance;
you’re investing in countless future adventures and ensuring your Pioneer remains a reliable companion for years to come.
Always consult your owner’s manual for the most accurate and up-to-date information specific to your model year.
Happy trails!
