The roar of the engine, the crunch of tires on gravel, and the wind in your face are all part of the UTV experience. But sometimes, the perfect ride is made even better with the perfect soundtrack. Installing a robust UTV Entertainment Systems is one of the most popular modifications, transforming a simple off-road vehicle into a mobile party machine. However, the UTV environment—mud, water, dust, and extreme vibration—is the ultimate test for any electronic equipment.
This comprehensive guide will navigate the complexities of building a high-quality, durable, and powerful entertainment system for your UTV. We will focus on the three critical areas: selecting the right weatherproof components, managing the system’s power demands, and optimizing speaker placement for sound quality that cuts through the trail noise.
Pillar 1: Component Selection – Built for the Wild
The first rule of UTV audio is simple: Do not use standard car audio equipment. The off-road environment requires components specifically designed to withstand the elements. This is where marine-grade equipment comes into play.

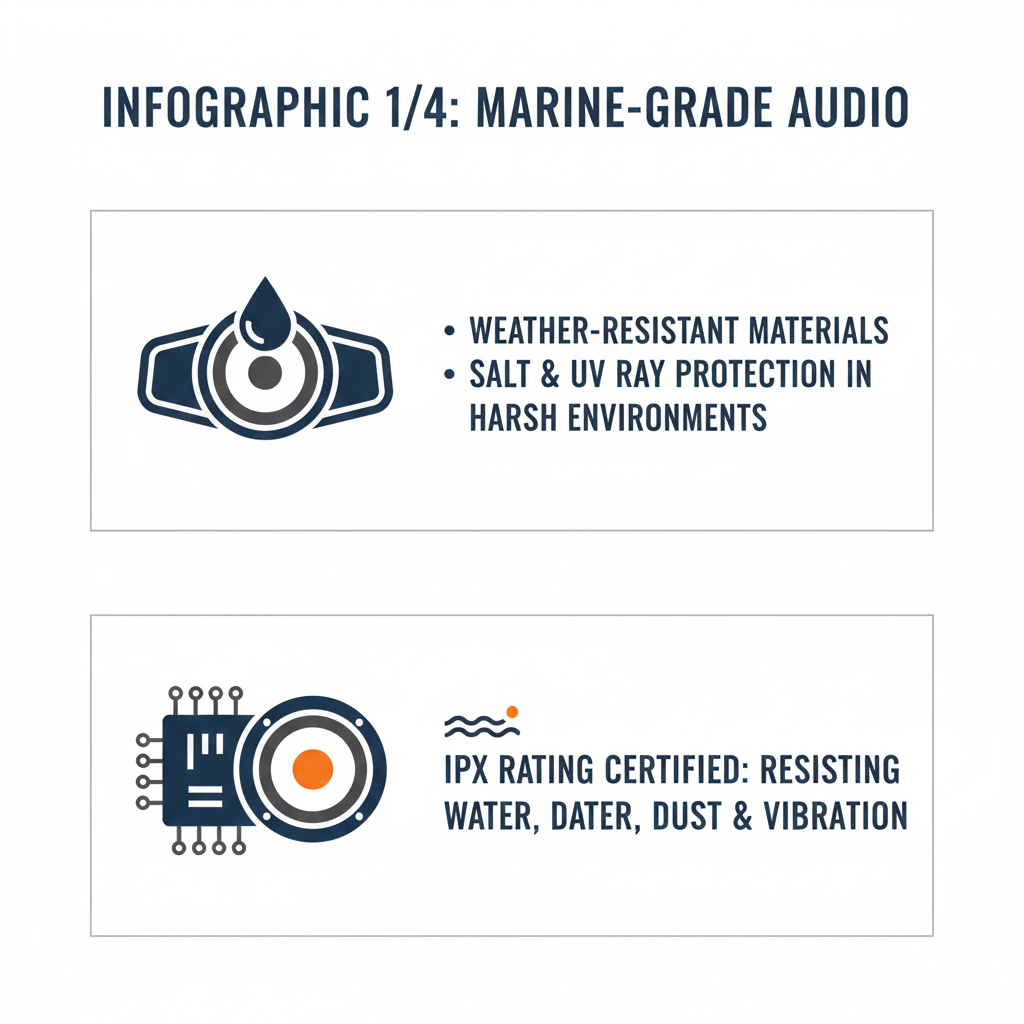

1. Marine-Grade Certification (IPX Rating)
Marine-grade audio components are built to resist water, salt, and UV exposure. The key indicator of durability is the Ingress Protection (IP) rating.
| IPX Rating | Protection Level | Ideal UTV Application |
|---|---|---|
| IPX5 | Protected against low-pressure water jets from any direction. | Minimum acceptable for speakers and amplifiers in the cabin. |
| IPX6 | Protected against high-pressure water jets from any direction. | Recommended minimum for speakers, soundbars, and head units exposed to mud and washdowns [1]. |
| IPX7 | Protected against temporary immersion in water (up to 1 meter for 30 minutes). | Ideal for components mounted low or in areas prone to deep water crossings (e.g., subwoofers). |
Always look for an IPX6 rating or higher for any component that will be exposed to the elements, including speakers, amplifiers, and head units.
2. Head Units and Source Units
The head unit is the brain of your system. In a UTV, it needs to be a digital media receiver (no CD player) with a weatherproof design.

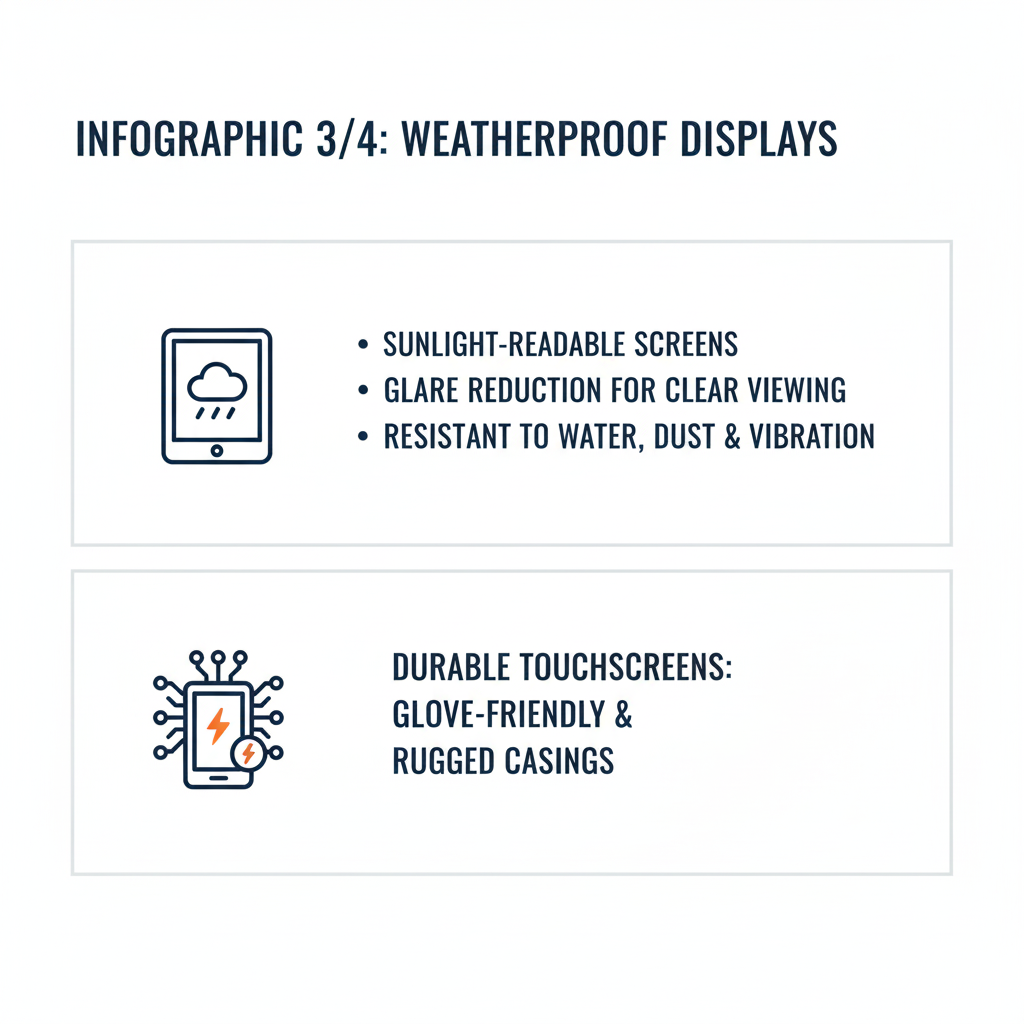

- Weatherproof Displays: Look for anti-glare, UV-resistant displays that are easy to read in bright sunlight. Many UTV-specific head units are designed to fit into standard gauge openings for a clean, factory look.
- Connectivity: Bluetooth is essential for wireless streaming. USB and auxiliary inputs, often with rubber covers, allow for wired connections and charging.
- Pre-Outs: Ensure the head unit has enough pre-amp outputs (front, rear, subwoofer) to support the number of amplifiers you plan to install.
3. Speakers and Soundbars
The high noise floor of a UTV (engine, wind, tires) means your speakers need to be loud and clear.
- Coaxial vs. Component: Coaxial speakers (tweeter and woofer combined) are simpler to install. Component speakers (separate tweeter and woofer) offer better sound quality but require more complex mounting.
- Soundbars: Integrated soundbars are a popular, all-in-one solution that mounts easily to the roll cage. They contain speakers, a tweeter, and often a built-in amplifier, offering a quick and powerful audio upgrade. Ensure the soundbar is also IPX-rated.
- Wake Tower Speakers: These are powerful, pod-style speakers originally designed for boats. They are excellent for UTVs, as they can be clamped directly to the roll cage, providing high-volume sound that projects over the engine noise [2].
Pillar 2: Power Management – Preventing Battery Drain
A powerful audio system can quickly drain a stock UTV battery, leaving you stranded miles from the trailhead. Proper power management is crucial for any serious UTV Entertainment Systems installation.

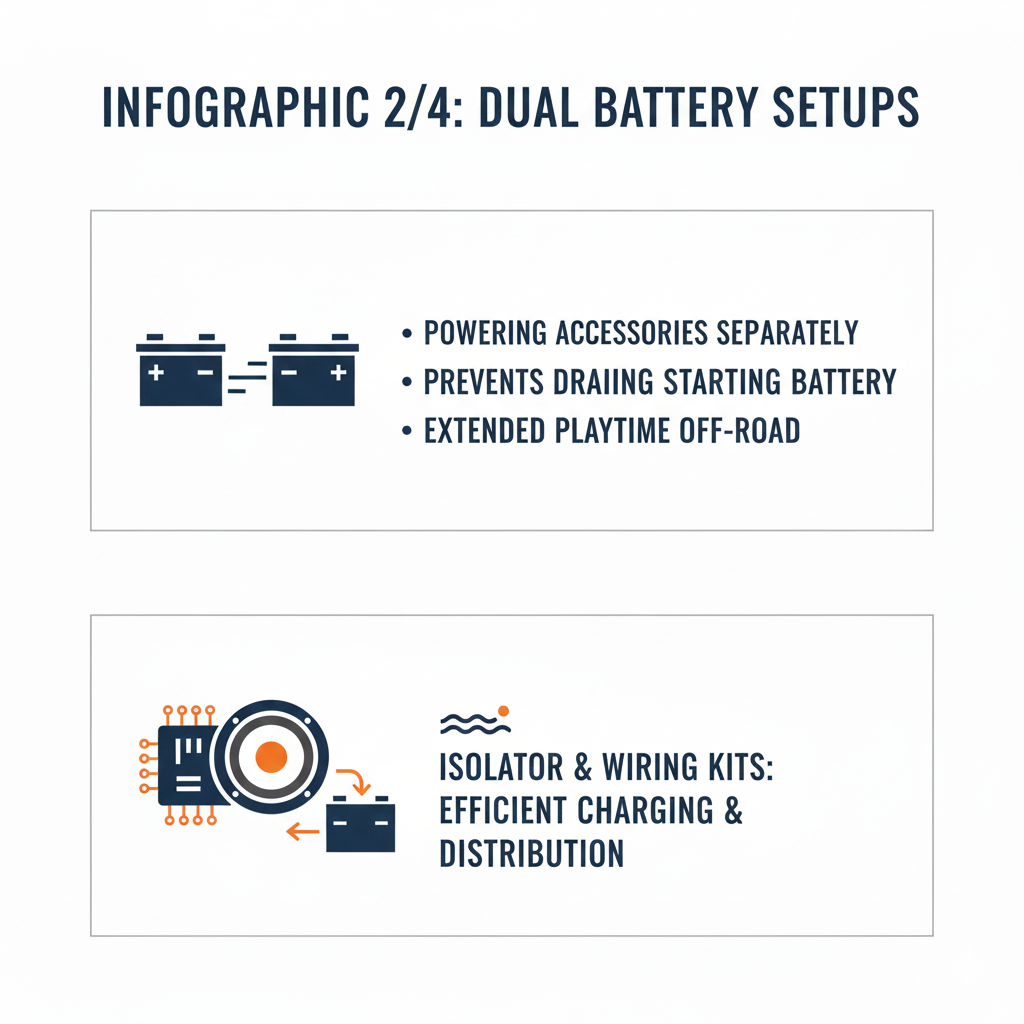

4. The Dual Battery System
The most effective solution for managing power consumption is to install a dual battery system. This separates the vehicle’s essential electrical functions from the accessory load.
- Starting Battery: Dedicated solely to starting the engine and running essential systems (ECU, lights).
- Accessory Battery (Deep Cycle): Dedicated to running the audio system, winch, light bars, and other accessories.
- Battery Isolator: A smart battery isolator is installed between the two batteries. It ensures that the accessory battery is charged when the engine is running, but it prevents the accessories from drawing power from the starting battery when the engine is off [3]. This guarantees you always have enough power to start your UTV.
5. Amplifier Selection and Efficiency
The amplifier is the biggest power draw in your system.
- Class D Amplifiers: Always choose a Class D amplifier for UTV applications. Class D amps are significantly more efficient (up to 90%) than older Class A/B amps, meaning they draw less current from the battery and generate less heat [4].
- Proper Wiring: Use high-quality, appropriately gauged wiring (e.g., 4-gauge or 8-gauge) for the main power and ground connections. A poor ground connection is a common cause of system noise and power inefficiency.
Pillar 3: Installation and Sound Optimization
Even the best components will sound terrible if installed incorrectly. UTVs present unique challenges for acoustic performance.
6. Strategic Speaker Placement
The goal is to place speakers where they can project sound directly to the occupants, overcoming the constant engine and wind noise.
- Dash/Kick Panel Speakers: Good for mid-range and high frequencies, providing a sound stage close to the listener.
- Overhead/Cage-Mounted Speakers: The most effective placement for high-volume sound. Mounting speakers to the roll cage (often via wake tower pods) projects the sound over the heads of the occupants, minimizing acoustic interference from the engine [5].
- Subwoofer Placement: Subwoofers are best placed in sealed enclosures under the seats or in the rear cargo area. Bass frequencies are less directional, but a solid, sealed enclosure is vital for deep, punchy bass.
7. Noise Mitigation and Sound Quality
Engine noise is the enemy of sound quality.
- Sound Deadening: Applying sound-deadening material (like butyl rubber sheets) to the plastic panels, floorboards, and firewall can reduce engine and road noise transmission into the cabin, allowing your music to be heard more clearly at lower volumes.
- Intercom Integration: For serious riders, integrating the audio system with a helmet-to-helmet intercom system (like those from Rugged Radios or Cardo) provides the clearest possible audio experience, piping music directly into the helmet speakers while allowing for clear communication.
Summary of UTV Entertainment System Upgrades
| Component/System | Key Specification | Primary Benefit |
|---|---|---|
| Head Unit/Speakers | IPX6 or IPX7 Marine Grade | Resistance to water, mud, and dust. |
| Amplifier | Class D Efficiency | Low power draw, less heat generation. |
| Power Supply | Dual Battery System + Isolator | Guarantees starting power; separates accessory load. |
| Speaker Type | Wake Tower Pods | High-volume sound projection over engine noise. |
| Installation | Sound Deadening Material | Reduces cabin noise floor for better sound clarity. |
| Installation | Proper Gauge Wiring | Prevents voltage drop and system noise. |
Building a high-quality UTV Entertainment Systems requires a thoughtful approach that prioritizes durability and power management. By selecting marine-grade components, installing a reliable dual battery system, and optimizing speaker placement, you can ensure your UTV is ready to provide the perfect soundtrack for every off-road adventure, no matter how rough the trail gets.
