Rock crawling is arguably the most demanding discipline in off-roading, requiring a perfect blend of machine capability, driver skill, and meticulous preparation. It is a slow, calculated dance where a single inch of movement can mean the difference between conquering an obstacle and a catastrophic rollover. The ATV rock crawler setup guide is your blueprint for transforming a standard ATV into a precision rock-climbing machine. 🧗
Unlike high-speed desert racing or mud bogging, rock crawling prioritizes low-speed control, maximum traction, and bulletproof durability. This guide will detail the four non-negotiable pillars of a successful rock crawler setup, ensuring your ATV is ready to tackle the toughest trails. ⛰️
Pillar 1: Low-Speed Control and Gearing
In rock crawling, speed is the enemy. The goal is to move as slowly and deliberately as possible to maintain traction and prevent component damage. This requires significant modifications to the ATV’s gearing. ⚙️

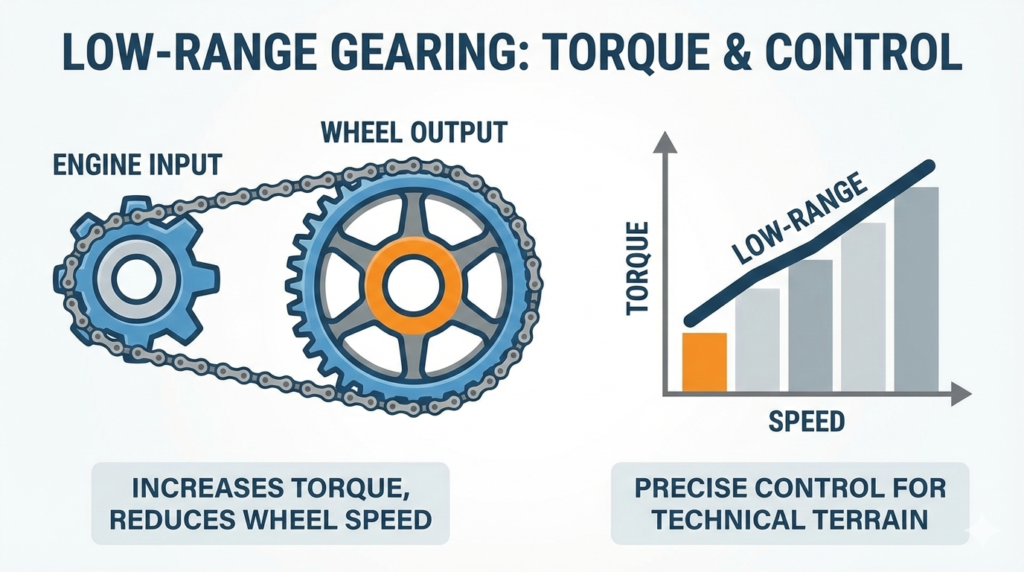

The Power of Low Range
The low-range gear (4L) on a utility ATV is essential. It multiplies the engine’s torque and significantly slows the wheel speed, providing the fine-tuned control needed to navigate technical obstacles. Low range gearing tips for off-road situations emphasize that 1st gear low is the best for maximum control. 🐢

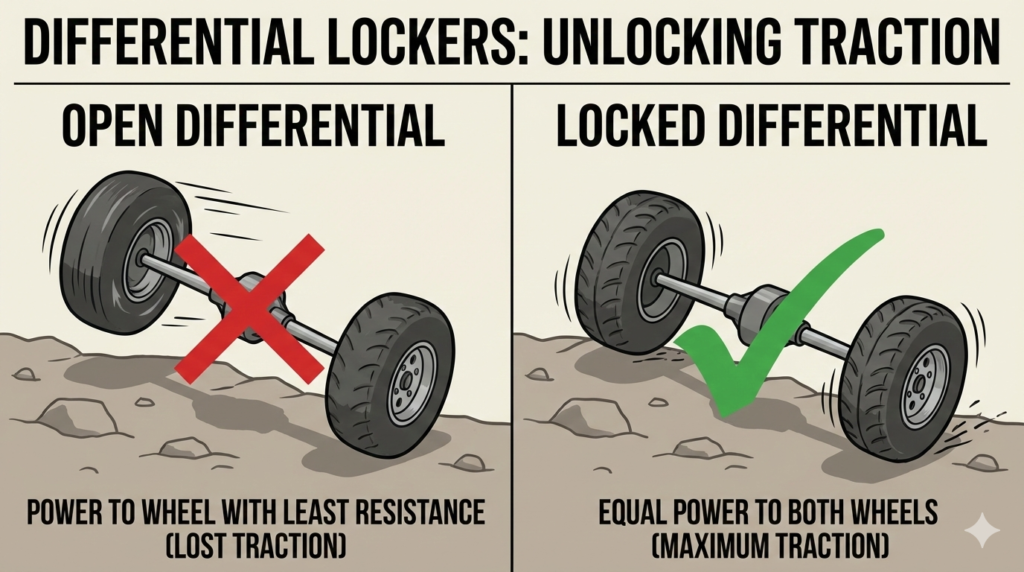

Differential Lockers
A differential locker is perhaps the most crucial upgrade for rock crawling traction. In a standard open differential, power is sent to the wheel with the least resistance. When one wheel is lifted off the ground, it spins uselessly while the wheel on the ground receives no power. 🛑
A locker mechanically locks the two wheels on an axle together, forcing them to spin at the same speed. This ensures that power is always delivered to the wheel with traction. 🔒
Pillar 2: Suspension Articulation and Geometry
Articulation is the ability of the suspension to allow the wheels to move up and down independently, keeping all four tires in contact with the uneven terrain. 📐
Long-Travel Kits and Shock Tuning
While long-travel kits are often associated with high-speed riding, they are vital for rock crawling as they increase articulation. The shocks must be tuned differently for crawling than for racing. 🛠️
- Soft Spring Rates: Allow the suspension to compress and extend easily, maximizing tire contact. ☁️
- Adjustable Damping: Low-speed compression damping should be set to allow for slow, controlled movement over obstacles without excessive bouncing. Top 5 Suspension Accessories for Utah’s Outdoor Enthusiasts often include long-travel kits for this reason. 🎯
High Clearance A-Arms
To prevent snagging on rocks, A-arms and trailing arms should be replaced with high-clearance versions that are arched or bent to provide maximum ground clearance at the lowest point of the suspension. ⬆️
Pillar 3: Tire Selection and Sidewall Strength
Tires are the final link to the rock face, and their composition is paramount. Rock crawling tires are a specialized breed. 🛞

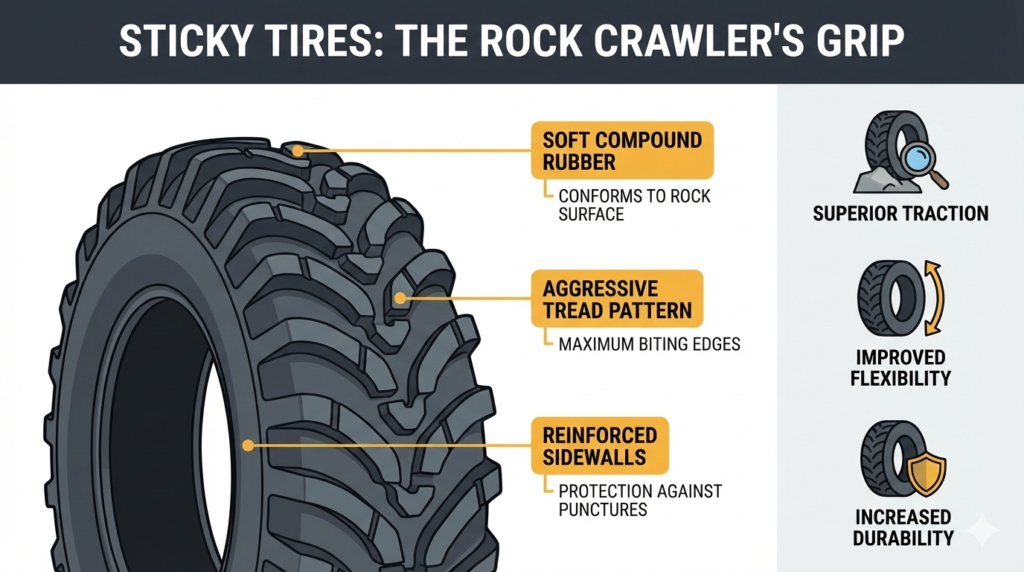

Sticky Compound Tires
The best rock crawling tires use a **sticky rubber compound**—a softer durometer rubber that literally conforms and adheres to the rock surface, providing unparalleled grip. The Ultimate Guide to Rock Crawling Tires highlights that while these tires wear faster, the grip advantage is non-negotiable for serious crawling. 🍬
Sidewall Durability and Beadlocks
Rock crawling involves pinching the tire between the rim and a sharp rock, making sidewall punctures a constant threat. 🔪
- High Ply Rating: Look for 8-ply or 10-ply rated tires for maximum puncture resistance. 🛡️
- Beadlock Wheels: These wheels mechanically clamp the tire bead to the rim, allowing the rider to safely run extremely low tire pressures (airing down) for a larger contact patch and better grip without the risk of the tire coming off the bead. 💨

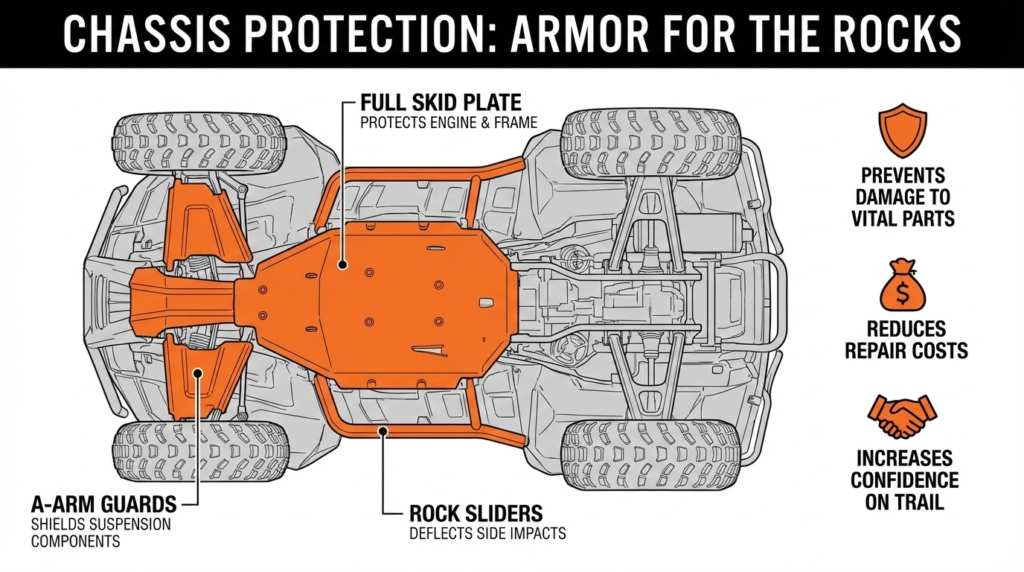

Pillar 4: Chassis and Component Protection
In rock crawling, contact with the ground is inevitable. Protecting the vulnerable undercarriage is essential to prevent costly damage. 🛡️
Full Chassis Skid Plates
A full set of heavy-duty skid plates, typically made from high-density polyethylene (HDPE) or thick aluminum, should cover the entire underside of the ATV, including the A-arms, engine, and differentials. These plates allow the ATV to slide over obstacles without catching. 🧊
Bumpers and Rock Sliders
Front and rear bumpers provide protection for the bodywork and lights, while **rock sliders** (or tree kickers) protect the side of the chassis and body from lateral impacts. These are often integrated into the frame for maximum strength. 🧱
Rock Crawler Setup Summary
The **ATV rock crawler setup guide** is a holistic approach to off-road modification. It is a system where low-speed control, traction, articulation, and protection work in concert to allow the ATV to climb seemingly impossible obstacles. Master these four pillars, and the rocks will become your playground. 👑
| Component | Purpose | Benefit |
|---|---|---|
| Differential Lockers | Forces both wheels to spin together. | Maximum traction when one wheel is airborne. |
| Sticky Compound Tires | Softer rubber adheres to rock surfaces. | Unparalleled grip and climbing ability. |
| High-Clearance Suspension | Increases ground clearance and articulation. | Prevents snagging and keeps tires on the ground. |
References and Further Reading
For those who wish to delve deeper into the technical aspects of rock crawling setup, the following resources are highly recommended. 📚
- Rock Crawling in a UTV: Everything You Need to Know – SuperATV Off-Road Atlas.
- A Beginner’s Guide to UTV Rock Crawling – Cardo Systems.
- Rock Crawling For Beginners – EZ Wheeler.
- Best Rock Crawling Tires to Dominate the Toughest Trails – Discounted Wheel Warehouse.
- Rock Crawler Build Guide: The Art of Articulation – SYZ Machine.
Happy crawling! 🥳
