Mud racing is a unique and demanding discipline in the off-road world. It’s a battle against gravity, friction, and the sheer, sucking power of thick, deep mud. A stock UTV, no matter how capable, will quickly become a submerged, immobile obstacle. To truly compete—or even just to survive—in the mud pits, you need a specialized machine.
This is where mud racing specific modifications come into play. These are not just cosmetic upgrades; they are critical engineering changes designed to keep water out, keep air in, and keep the tires turning when everything else is trying to stop you.
I’ve seen the transformation from a trail-ready UTV to a dedicated mud machine, and the difference is staggering.
It takes a strategic approach to ensure every component is protected and optimized for the slop.
This guide will walk you through the essential modifications that will turn your UTV into a true mud warrior.
Phase 1: The Foundation—Tires and Lift
The single most important factor in mud racing is traction, and that starts with the tires and the clearance to run them.
1. Aggressive Mud Tires
- Deep, Open Tread: Mud tires are characterizes by their extremely deep, widely spaced lugs. This design allows the tire to dig down through the mud to find solid ground and, just as importantly, to self-clean as the tire rotates.
- Tire Size: Mud racers often run tires significantly larger than stock (30 inches and up) to increase ground clearance and the contact patch.
- Popular Choices: Look for tires specifically designed for mud, such as the Outlaw Radials or other aggressive, high-ply tires that can withstand the abuse of deep ruts [1].

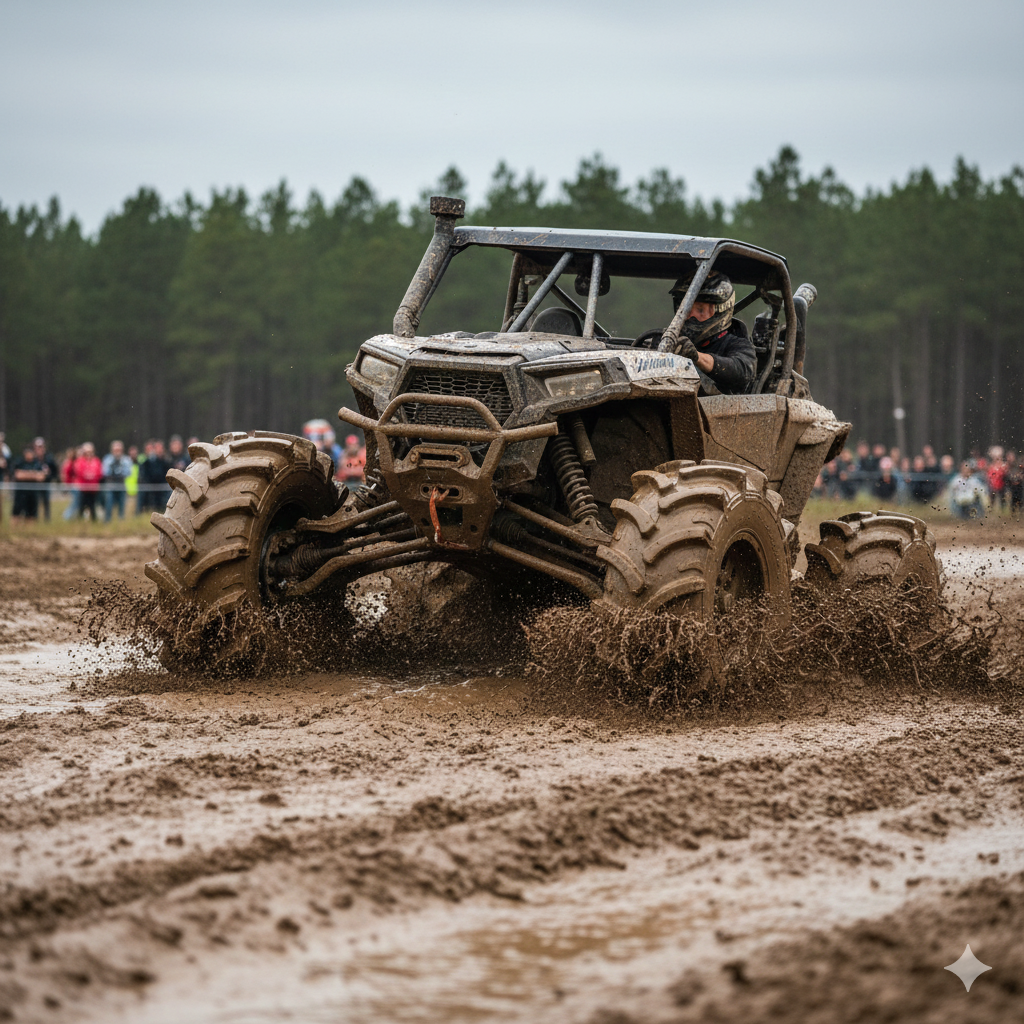

2. Lift Kits and High Clearance
- Ground Clearance: To run larger tires and prevent the UTV’s undercarriage from dragging in the mud, a lift kit is essential. This can be a simple bracket lift or a more complex portal gear lift that also adds gear reduction at the wheel hub.

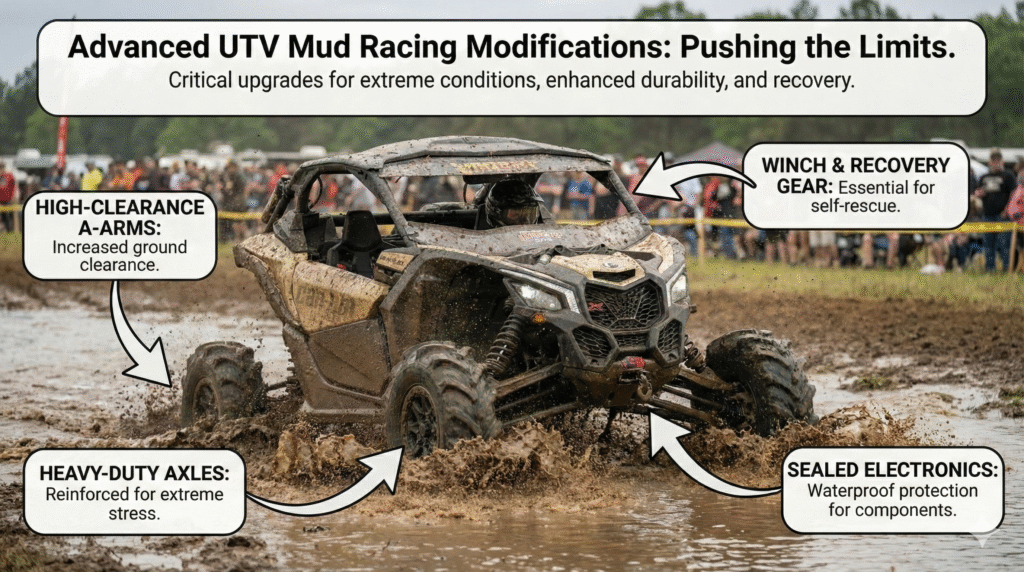

- High-Clearance A-Arms: Standard A-arms can get hung up on ruts and obstacles. High-clearance A-arms are bent to provide several inches of extra clearance, allowing you to glide over obstacles that would stop a stock machine.
Phase 2: Water Protection—The Snorkel System
Mud racing inevitably involves deep water and mud holes. Protecting the engine and drivetrain from water ingestion is paramount.
1. Engine and Air Intake Snorkels
- Raising the Intake: A snorkel system reroutes the engine’s air intake from its low, vulnerable stock location to a high point, usually above the roofline. This prevents water from being sucked into the engine, which would cause catastrophic failure (hydro-lock).
- Proper Installation: Snorkel installation requires careful sealing of all connections to ensure an airtight and watertight system [2]. Any leak can compromise the entire setup.
2. Drivetrain and Vent Line Snorkels
- CVT and Belt Protection: The Continuously Variable Transmission (CVT) on many UTVs uses a belt that must remain dry. A CVT snorkel raises the intake and exhaust vents, protecting the belt from water and mud.
- Differential and Gearbox Vents: Axle and gearbox vents are designed to equalize pressure, but they must be extended to a high point. If submerged, cold water can be sucked into the hot gear cases, contaminating the oil and leading to failure.
Phase 3: Performance and Drivetrain Optimization
Mud puts an incredible strain on the UTV’s drivetrain. Modifications are need to handle the extra load from large tires and the resistance of the mud.
1. Clutch Kits
- Torque Management: Larger, heavier mud tires change the gearing and put immense stress on the clutch. A performance clutch kit is essential to recalibrate the clutch for the larger tires, ensuring optimal power transfer and preventing belt slippage and overheating [3].
- Low-End Power: The clutch kit helps the UTV maintain the low-end torque needed to churn through thick mud without bogging down.
2. Drivetrain Reinforcement
- Heavy-Duty Axles: The stress of mud racing frequently breaks stock axles. Upgrading to heavy-duty, chromoly axles is a common and necessary modification.
- Gear Reduction: Some serious mud builds incorporate gear reduction kits to increase torque and reduce the strain on the entire drivetrain.
Phase 4: Protection and Recovery
When you are deep in the mud, you need to be able to protect your machine and, if necessary, get yourself out.
1. Skid Plates and Mud Guards
- Underbody Protection: Full-coverage skid plates, often made of UHMW plastic or thick aluminum, protect the vulnerable undercarriage, including the A-arms, axles, and frame, from hidden rocks and debris [4].
- Mud Guards: Custom mud guards and fender flares help keep the worst of the mud and water spray out of the cab and off the driver, improving visibility and comfort.
2. Winch and Recovery Gear
- High-Capacity Winch: A powerful, high-capacity winch (at least 4,500 lbs) is a non-negotiable item. It should be mount securely and wired to a heavy-duty battery.

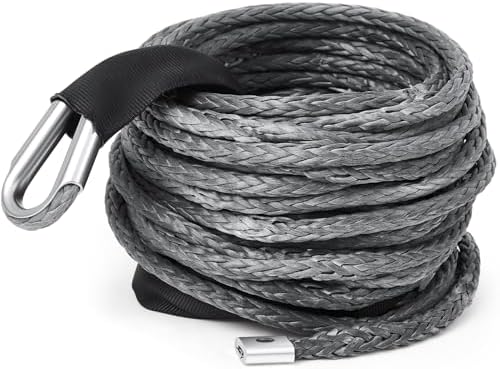

- Synthetic Rope: Synthetic winch rope is lighter, safer, and easier to handle than steel cable, which is a major advantage in a muddy environment.
Conclusion: Built to Battle
Mud racing specific modifications are a testament to the extreme demands of the sport. They are a carefully consider set of upgrades that work in concert to create a machine capable of conquering the most challenging terrain. From the aggressive bite of the mud tires to the life-saving snorkel system, every mod serves a critical purpose.
If the mud is calling your name, remember that preparation is key. Build your UTV right, and you won’t just survive the mud pit—you’ll dominate it.
Keep the shiny side up and the air intake dry!
