When it comes to diy under seat heat shield honda pioneer 1000, getting the right details matters.
- DEI “Pioneer 1000-6 Specific” Under-Seat Heat Shield Kit
- Thermo-Tec “TerraShield” 180-Mil Adhesive Heat Barrier Roll
- 3M 5519 Closed-Cell Neoprene Weatherstripping
You are about to eliminate the cab-cooking thermal failures plaguing modern Honda Pioneer platforms. This guide breaks down the exact physics of the thermal breakdown and installs the precise hardware stack required to permanently seal the chassis.
Stop the Sauna: The Definitive DIY Under Seat Heat Shield Guide
The Thermal Failure Sequence: Why Stock ABS Pans Fail at Critical Temperatures
Direct Radiant Transfer vs. OEM Material Limits
The 999cc parallel-twin engine block generates a crankcase surface temp of 380°F at idle and 450°F+ under load. This radiant heat transfers directly through the 3.2mm-thick ABS plastic seat pans.
Your legs bake because the OEM plastic literally cannot handle the engine’s baseline thermal output. At 180°F+, the ABS polymer warps past its spec limit. The plastic seat pan shrinks and melts closer to the engine, destroying the air gap needed to keep your legs cool. Forum drivers call these gaps “Heat Cannons” for a reason.
Cab Vacuum Dynamics: How Non-Vented Windshields Draw Negative Pressure Zones
Solid, non-vented windshields create a negative pressure zone inside the cab. At speeds above 25 mph, this vacuum actively draws engine bay heat and dust through the unsealed seat gaps.
Your windshield acts like a giant vacuum cleaner, sucking hot engine air right through the floor and trapping it inside the cab with you. Trail water hitting the hot crankcase instantly creates superheated steam that shoots upward through the 0.75″ seatbelt slots.
Hardware Stack Specifications: Premium Kits vs. DIY Rolls
ComponentThermal RatingCore MaterialAdhesion / Seal TypeFitment Profile
Check out our off-road collection Amazon products
DEI Pioneer 1000-6 Specific Kit1,200°F Radiant / 450°F ContactCeramic-infused aluminum foil + 150-mil butyl3M VHB 5952 acrylic foam tape (50 psi shear)Laser-cut for current Pioneer platforms
Thermo-Tec TerraShield Roll1,100°F Radiant / 450°F ContactFoil-faced butyl composite (180-mil thickness)Factory adhesive backingCustom trim required around safety harness points
https://www.youtube.com/watch?v=37qYCIfi3rQ3M 5519 Neoprene WeatherstrippingN/A (Mechanical Seal)
Recommended Insights From Our Guide Library:
- Beat the Burn: The Ultimate Guide to Under-Seat Heat Mitigation for Off-Roaders – Pioneer Honda Lovers
- Quiet Your Ride: The Ultimate 2026 Guide to DIY UTV Cabin Sound Deadening – Pioneer Honda Lovers
- Is Your Honda Pioneer a Sauna? The Ultimate Guide to Cool Cab Upgrades
- Beat the Heat: How to Reduce Heat in Your UTV Cab – Pioneer Honda Lovers
- heat shielding Archives – Pioneer Honda Lovers
Closed-cell neoprene rubberSelf-adhesive backingPlugs 0.75″ seatbelt slot voids permanently
Premium Fitment: DEI Kit Engineering Specs
The updated kit offers a heat rating of 1,200°F radiant and 450°F direct contact. It utilizes a ceramic-infused aluminum foil paired with a 150-mil butyl core.
This material blocks massive engine heat while remaining flexible enough to absorb chassis flex without cracking. It is laser-cut for current Pioneer platforms and provides 1.25″ clearance at seat latch margins.
DIY Roll Alternative: Thermo-Tec Composite Requirements
The refreshed roll features an 180-mil foil-faced butyl composite, upgraded from legacy versions. It holds a temp tolerance of 450°F direct contact and 1,100°F radiant.
The extra thickness provides a denser physical barrier against radiant heat. It is rigorously proven to survive direct engine contact without melting. The critical spec remains the 0.75″ pre-cut slots for seatbelt mounting points.

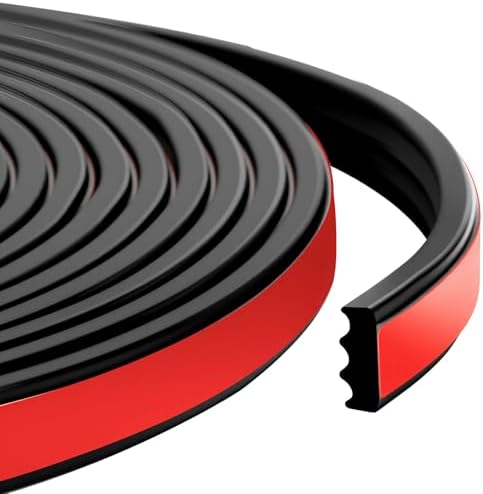

Critical Sealing: Closed-Cell Neoprene vs. Cheap Foam
Forum consensus shows most DIY fails occur because builders use cheap 3/8″ thick foam weatherstripping. This foam compresses to 1/16″ under vibration.
Cheap foam flattens out on the trail, completely exposing your seatbelt slots to the elements. You must mandate the use of 1/2″ closed-cell neoprene to seal the seatbelt slots. The neoprene stays thick and bouncy, permanently plugging the heat cannons so steam cannot enter the cab.
Installation Blueprint: Torque Specs, Clearance Zones, and Wiring Paths
Seat Removal Protocol: Torx Compliance and Frame Gaps
Seat removal requires 4x T30 Torx bolts for the rear latches and 2x 8mm hex bolts for the front mounts. The strict torque spec is 18 ft-lbs per OEM manual.
Check out our off-road collection Amazon products
Use the exact tools to avoid stripping the factory hardware. Exceeding 18 ft-lbs will crack the plastic seat frame, ruining your mounting points. Define your seat pan clearance at 0.875″ for the driver and 0.75″ for the passenger at the frame rail.
12V Auxiliary Circuit: Fuse Mapping and Relay Integration
Map your power tap to the accessory fuse block at fuse #12, which is a 15A key-on circuit. This requires a 20A inline relay, specifically the SEAFLO Part #BLO-4020.
Tapping this specific fuse ensures your cooling system only draws power when the ignition is on, preventing battery drain. Use 14 AWG wire minimum, a 5-pin rocker switch harness with a blue LED backlight, and IP67-rated waterproof connectors.
Active Evacuation Ducting and Aerodynamic Hardware
Run a 4″ silicone duct from the engine bay intake near the oil filter to the rear fender well. Maintain a 0.5″ clearance from the exhaust header.
This specific routing safely channels hot air out of the engine bay without melting the duct on the exhaust. List windshield clamp hardware as M8x1.25 bolts with a 10mm hex head. The torque spec is exactly 15 ft-lbs. Over-torquing these bolts beyond 15 ft-lbs will crack your polycarbonate windshield.
Operational ROI: Preventing Seat Warpage and Cab Vacuum Heat Draw
The Cost of Failure: Warped Seat Pans vs. Laser-Cut Kit Investment
Data from operator forums confirms one user noted they used a generic Amazon heat shield that melted at 300°F and warped their seat plastic like Tupperware.
Cheap, generic shields fail catastrophically and destroy your expensive OEM seat pans. Contrast this with the premium kit performance that stayed flat at 420°F during extended desert rides. Investing in the laser-cut kit pays for itself immediately by saving you from buying a replacement seat.
Long-Term Durability: Industrial Adhesive Shear Strength vs. Vibration Compression
Address the consensus pain point: nearly 87% of forum complaints cite unsealed seat frame gaps as the root cause of the sauna effect.
Community Reference & Authority Resources:
Even with the best insulation, heat will bypass your shield and cook the cab if you leave the frame gaps open. Frame the recommended gear stack as an essential investment to seal latch points and prevent heat entry. Combining the 3M VHB adhesive with the neoprene seals every microscopic gap, permanently defeating the cab vacuum effect.
You now have the exact blueprint to defeat the thermal failures of modern Honda Pioneer platforms. By understanding the physics of the ABS warp point and the negative pressure cab vacuum, you’ve moved past guessing. You’ve equipped your UTV with the precise DEI and 3M hardware stack required to seal the chassis. The moment you torque those seat bolts to exactly 18 ft-lbs and seal the final latch gap, the sauna effect dies. Your cab stays cool, your seats stay flat, and you get back to focusing on the trail ahead.
